Find the right handheld oscilloscope
Two series and six models, from 100 MHz to 200 MHz — battery-powered handhelds with a built-in true-RMS multimeter, and multi-touch tablet instruments with 70 Mpts of memory. Filter by bandwidth, channels and input isolation.
Filter by what matters to you
Select any combination of criteria. Choosing more than one option within a row widens the search rather than narrowing it.
| Model | Series | Bandwidth | Channels | Sample Rate | Memory Depth | Display | Inputs | Link |
|---|---|---|---|---|---|---|---|---|
| GPS-810X | 800X | 100 MHz | 2 + meter | 1 GSa/s | 12 Mpts | 5.6″ (640×480) | Shared ground | View series → |
| GPS-820X | 800X | 200 MHz | 2 + meter | 1 GSa/s | 12 Mpts | 5.6″ (640×480) | Shared ground | View series → |
| GPS-1102X | 1000X | 100 MHz | 2 + meter | 1 GSa/s | 12 Mpts | 5.6″ (640×480) | Isolated | View series → |

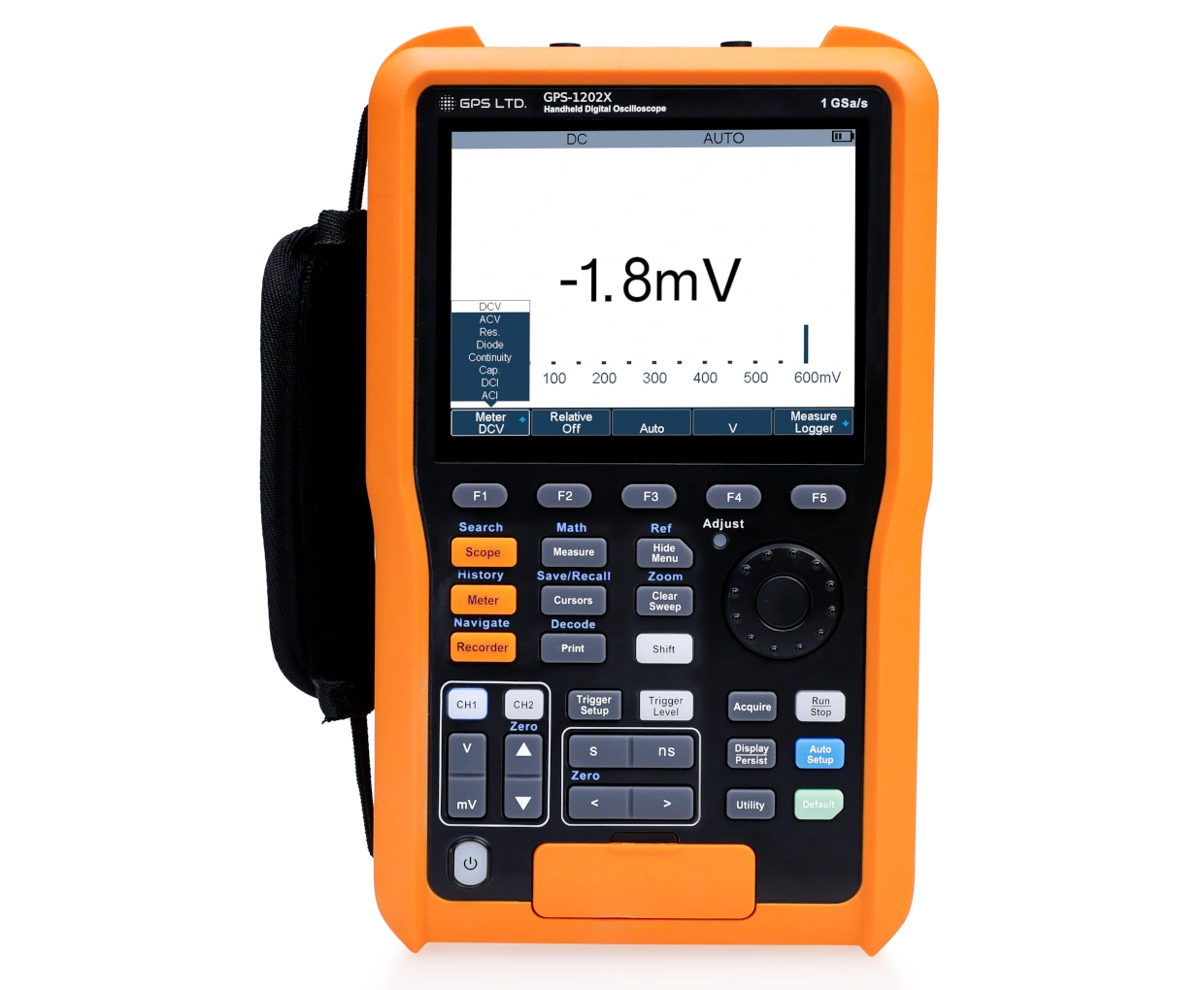

| GPS-1202X | 1000X | 200 MHz | 2 + meter | 1 GSa/s | 12 Mpts | 5.6″ (640×480) | Isolated | View series → |
| GPS-1104D | 1000D | 100 MHz | 4 | 1 GSa/s | 70 Mpts | 8″ touch (800×600) | Shared ground | View series → |
| GPS-1202D | 1000D | 200 MHz | 2 | 1 GSa/s | 70 Mpts | 8″ touch (800×600) | Shared ground | View series → |
Browse by series
Two approaches to portable measurement — pick the form factor that suits how you work.

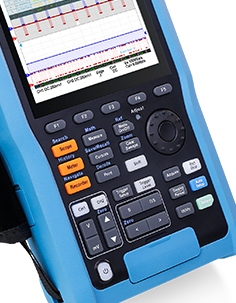

GPS-800X / 1000X
Scope, 6000-count true-RMS multimeter, FFT analysis and data logger in one hand. The 1000X models isolate every channel, so you can probe points at different potentials without shorting through the instrument.

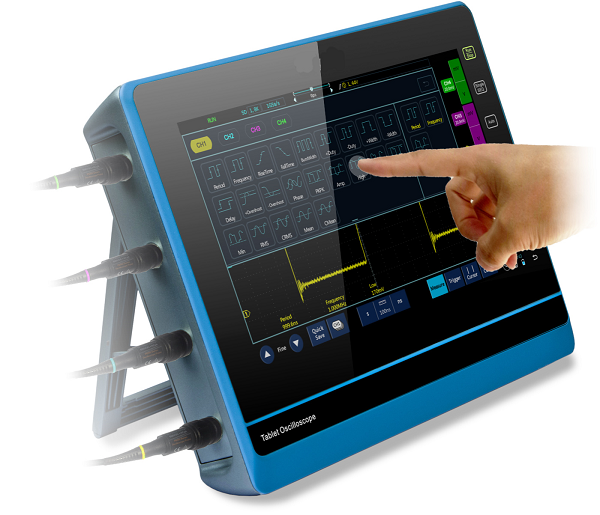

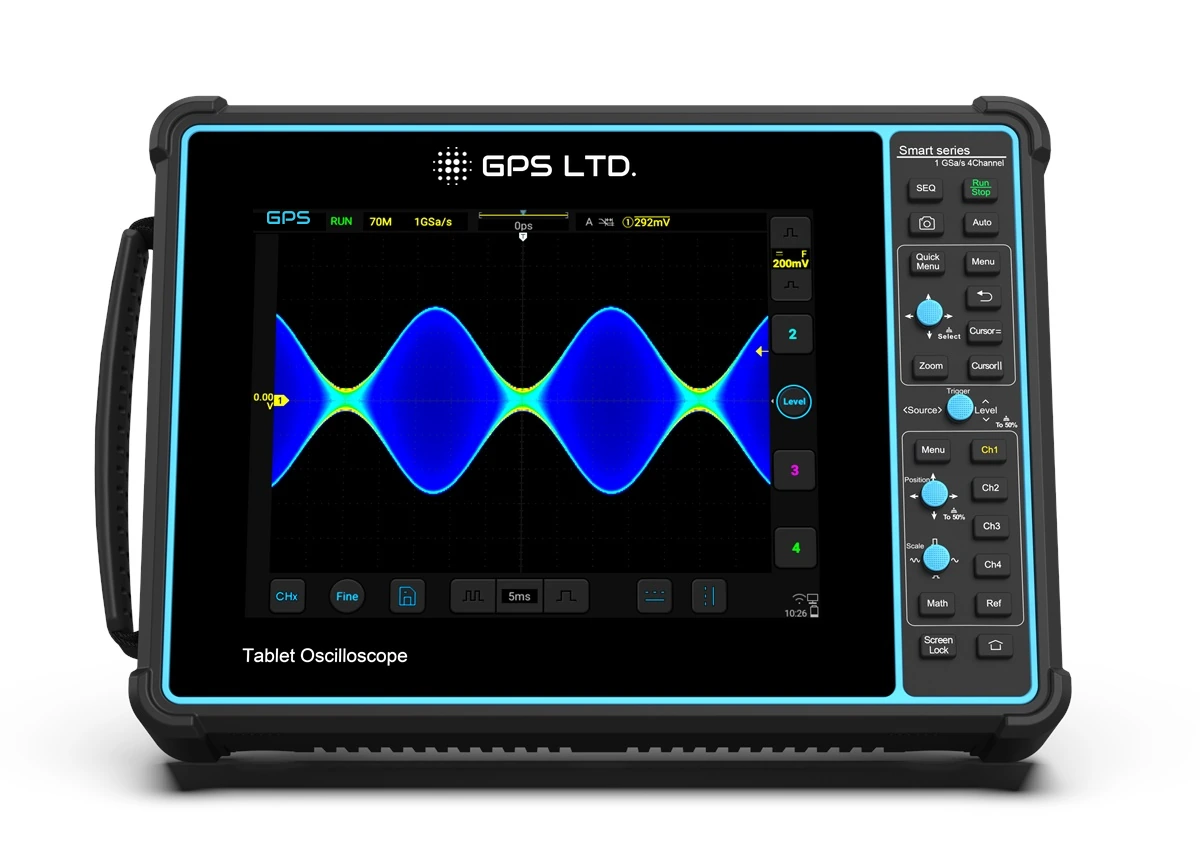

GPS-1000D
An 8″ multi-touch tablet oscilloscope with 70 Mpts of memory and up to five hours on battery. Pinch, swipe and drag rather than stepping through menus, with 32 GB of on-board storage for captures.
