Electronic Component Testing

Ohmmeters

From a hundredth of a microhm to ten teraohms.

Two kinds of resistance measurement live here. The micro-ohm meters drive current through a joint, a winding or a contact and measure with four terminals, so the leads drop out of a milliohm reading. The insulation resistance meter does the opposite: it puts up to 1000 V across insulation and reads the few picoamps that get through. Filter by what you are measuring, then by range, accuracy and whether the result has to go to a machine.

Find My Meter
7
Models
10 TΩ
Top of Range
0.01 µΩ
Finest Resolution
±0.01%
Best Accuracy
Model Finder

Find the right resistance meter

Select any combination of criteria. Choosing more than one option within a row widens the search rather than narrowing it.

Measuring
Format
Top of the range
Basic accuracy
Resolution
Handler output
Basic accuracy is the best case: it belongs to the slowest measurement rate and to the middle of the range. Per-range tables are on the product pages and in the datasheets. Resolution is given for the micro-ohm meters; the GPS-3861C reads to a maximum of 9999.
ModelFormatMeasurement rangeBasic accuracyResolutionSorting outputLink to product page
GPS-885Handheld10 µΩ to 20 MΩ±0.05%10 µΩ—View product
GPS-8815CBenchtop1 µΩ to 20 MΩ±0.05%1 µΩHandlerView product
GPS-8815EBenchtop1 µΩ to 30 kΩ±0.1%1 µΩ—View product
GPS-8815GBenchtop0.01 µΩ to 500 Ω±0.01%0.01 µΩ—View product
GPS-8815FBenchtop0.01 µΩ to 20 MΩ±0.01%0.01 µΩ—View product
GPS-8815DBenchtop0.1 µΩ to 1.2 GΩ±0.01%0.1 µΩHandlerView product
GPS-3861CBenchtop100 kΩ to 10 TΩ, at 1 to 1000 V DC±1%9999 max readingHandlerView product
No models match that combinationTry clearing a filter row, or ask us and we will tell you whether something in the wider range fits.
The Range

Five families, in two groups

Low resistance meters push current through a conductor and measure the drop. The insulation meter puts voltage across an insulator and measures what leaks. Choose the group first, then the family.

Low resistance

Four-terminal micro-ohm and DC resistance meters · 0.01 µΩ to 1.2 GΩ

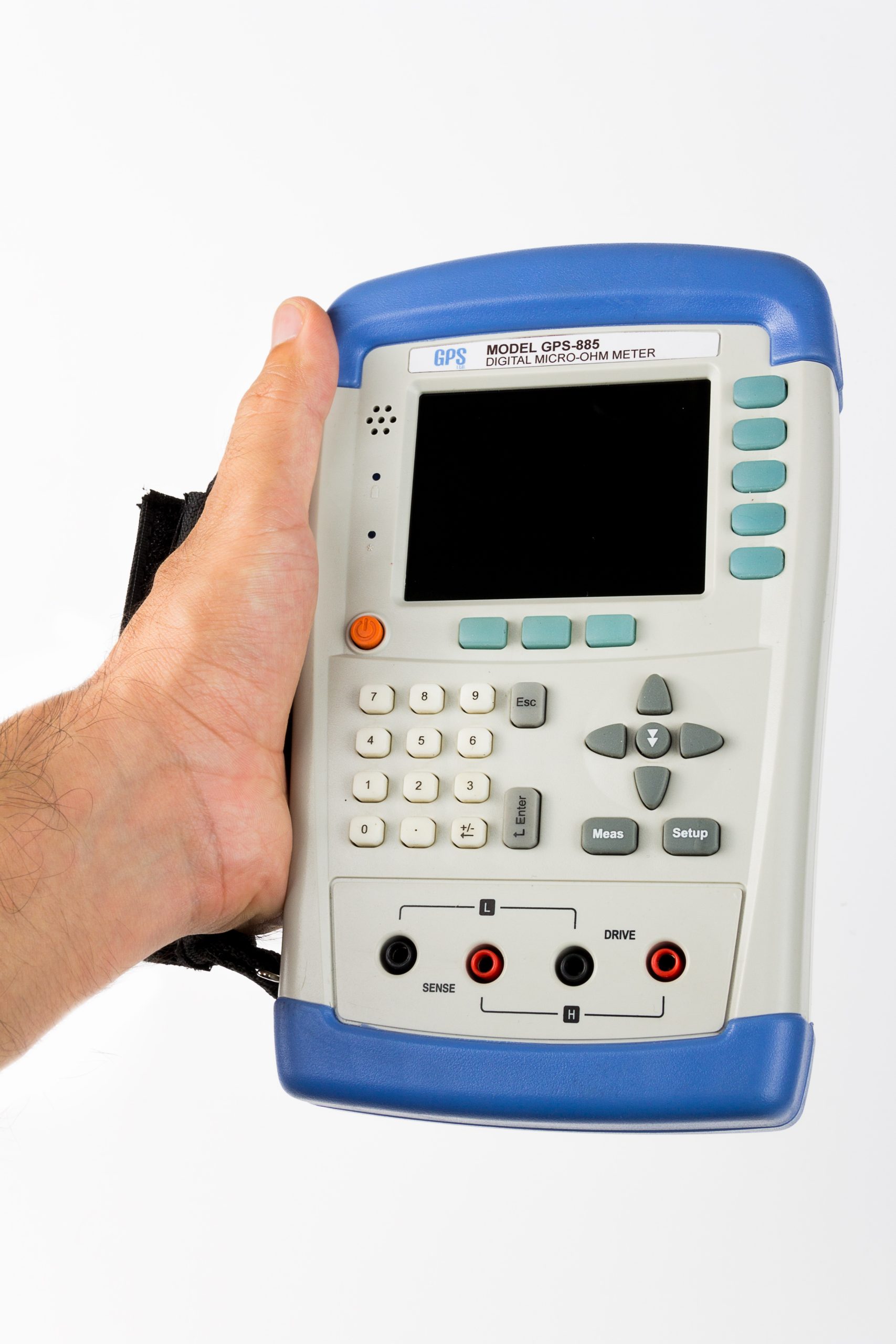

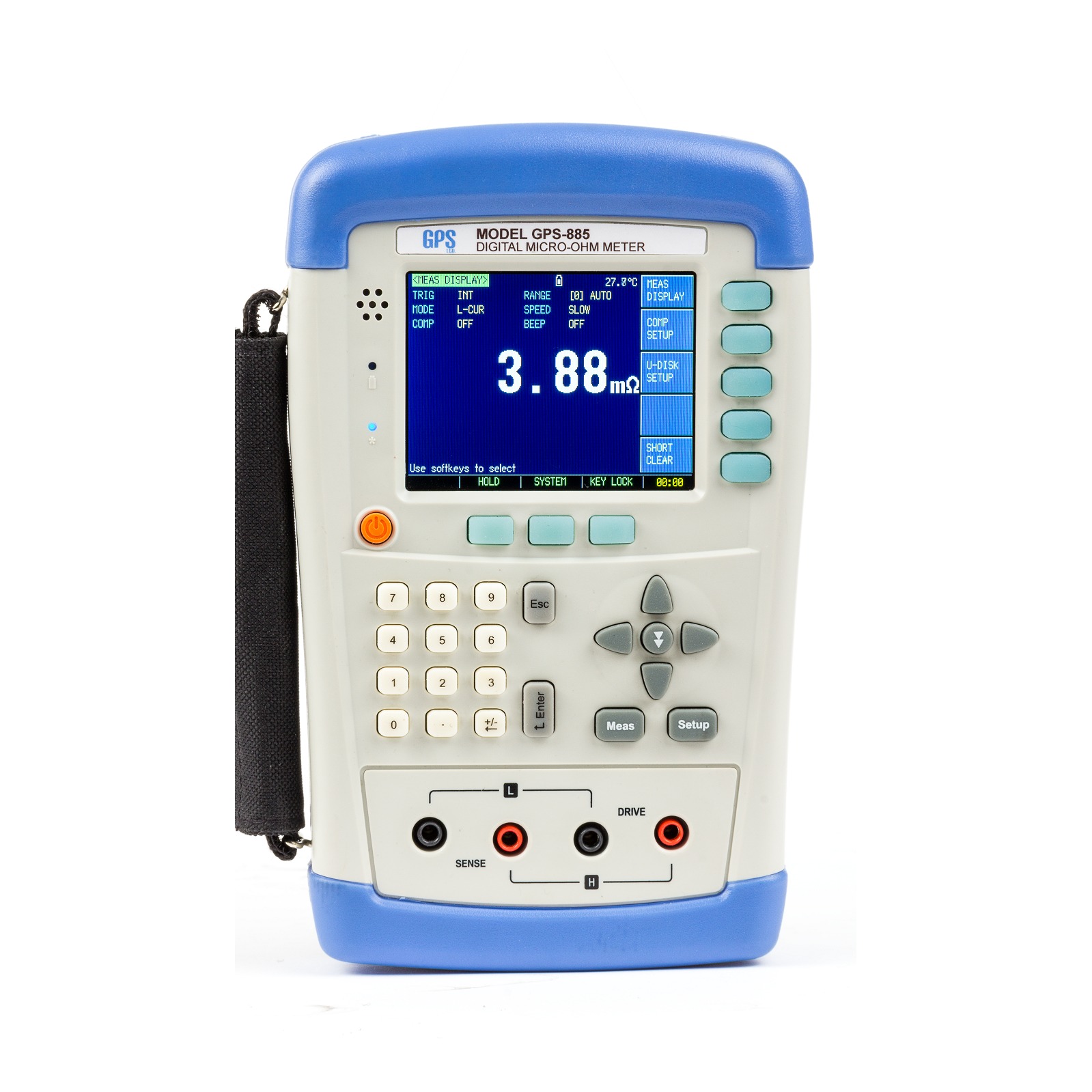

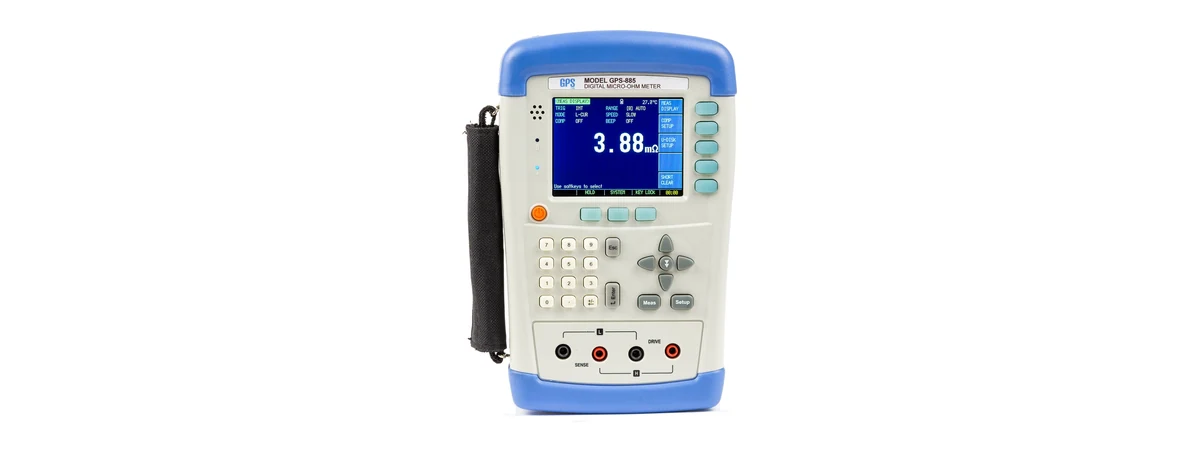

GPS LTD GPS-885 Digital Micro-ohm Meter
Handheld1 model

GPS-885

Digital Micro-ohm Meter

The only one here you can carry. Four-terminal, ten ranges, and over eight hours on a charge, so the meter goes to the motor rather than the motor coming to the bench.

10 µΩ to 20 MΩ ±0.05% at the slow rate Temperature compensation 500 g · 8 hours on a charge

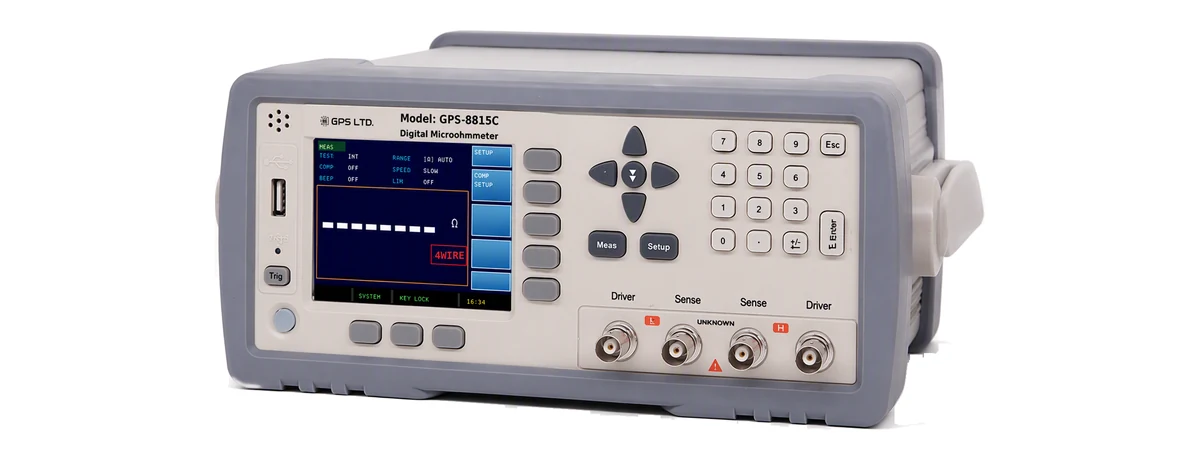

GPS LTD GPS-8815C/E Digital Micro-ohm Meters
Benchtop2 models

GPS-8815C/E

Digital Micro-ohm Meters

The production pair. Thirteen bins, an opto-isolated Handler and up to 140 readings a second put the verdict where the line can read it. The E drops the Handler and stops at 30 kΩ.

1 µΩ to 20 MΩ or 30 kΩ ±0.05% or ±0.1% Thirteen-bin comparator Up to 140 readings/s

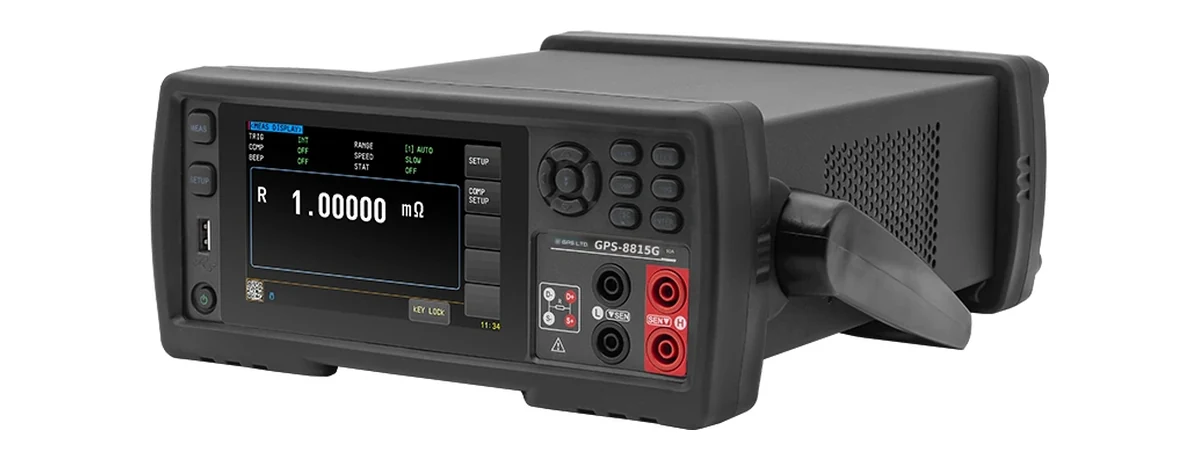

GPS LTD GPS-8815G/F Precision DC Resistance Meters
Benchtop2 models

GPS-8815G/F

Precision DC Resistance Meters

Ten amps, sent as a reversing pulse so the joint never heats and the thermal voltage at the contacts cancels. The finest resolution in the range, on a five-inch touch screen.

0.01 µΩ resolution ±0.01% + 3 digits Pulsed current to 10 A RS232, RS485, LAN and USB

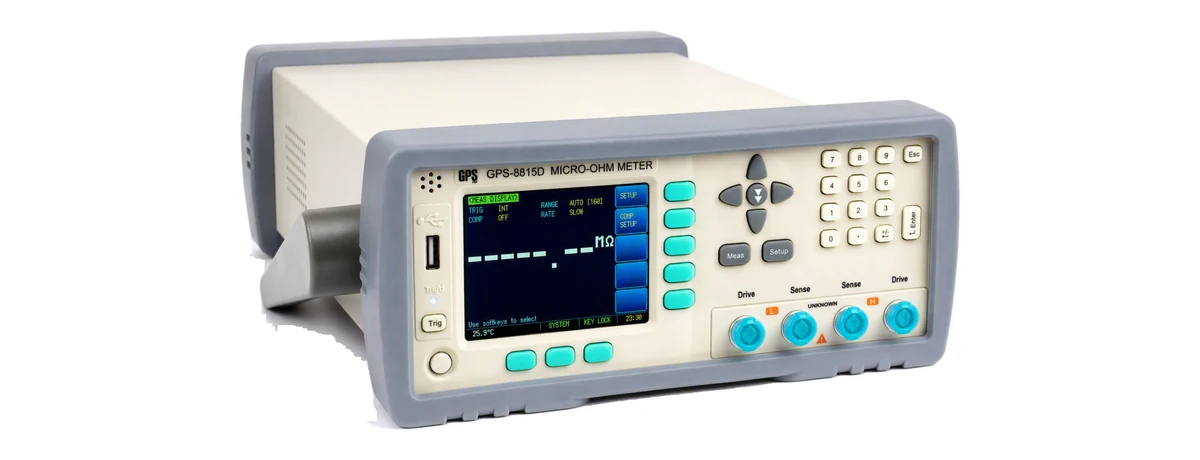

GPS LTD GPS-8815D Precision Micro-ohm Meter
Benchtop1 model

GPS-8815D

Precision Micro-ohm Meter

Ten decades on one instrument, from a tenth of a microhm to over a gigohm, across twelve ranges. Five measurement rates, the fastest of which blanks the display to feed a handler.

0.1 µΩ to 1.2 GΩ ±0.01% at the slow rate Twelve ranges · 1 200 000 counts 2 to 220 readings/s

High resistance and insulation

Test voltage 1 to 1000 V DC · 100 kΩ to 10 TΩ
GPS LTD GPS-3861C Insulation Resistance Meter
Insulation1 model

GPS-3861C

Insulation Resistance Meter

Sets its own test voltage anywhere from 1 V to 1000 V in tenth-of-a-volt steps, then reads resistance and leakage current together. A charge timer lets capacitors and cable settle first, and PASS, UPPER and LOWER go straight to the line through the Handler.

100 kΩ to 10 TΩ 1.0 to 1000 V DC ±1% above 1 MΩ, slow rate Up to 55 readings/s
Choosing

Five things worth settling first

Conductor or insulator?

If you want to know how well something conducts, a joint, a crimp, a winding, a contact, you want one of the micro-ohm meters, which drive current and measure with four terminals. If you want to know how well something blocks current, a capacitor, a cable, a dielectric or an assembly, you want the GPS-3861C, which applies up to 1000 V and reads up to 10 TΩ. The two overlap only between 100 kΩ and 1.2 GΩ, and they do not measure the same way there.

Resolution and range pull against each other

The finest resolution in the range belongs to the GPS-8815G, at 0.01 µΩ, but it stops at 500 Ω. The widest span belongs to the GPS-8815D, ten decades to 1.2 GΩ, at a tenth of that resolution. Decide which end of your work is the awkward one before you decide anything else.

Every accuracy figure here is a speed setting

None of these instruments holds its headline figure at speed. The GPS-8815C is 0.05% at two readings a second and 0.5% at thirty-five; the GPS-8815D is 0.01% slow and 0.1% fast. On both, the very fastest rate blanks the display, because it exists to feed a handler rather than a person. The per-range tables are on each product page.

Sorting on a line, or measuring at a bench?

If a machine has to read the verdict, you want the Handler interface: that is the GPS-8815C, the GPS-8815D and the GPS-3861C. The GPS-8815E and the GPS-885 sort and beep but report over RS-232 or not at all, which is fine at a bench and no use on a line.

For cable, cord and strip, add the clamp

Low-resistance readings on a length of cable are only as repeatable as the contact. The C04A clamping device holds samples 50 to 1000 mm long and 0.1 to 1256 mm² in section, with current connections rated 100 A and the potential taps fixed 38 mm away, so the same sample reads the same way twice. Part number 902655.
