Transformer Test Equipment
Turns ratio, winding resistance, contact resistance, high-voltage IR and more.
Quick view — Transformer Test Equipment
Quick Reference
Model Comparison
| Model | Type | Primary Use | I/O | |
|---|---|---|---|---|

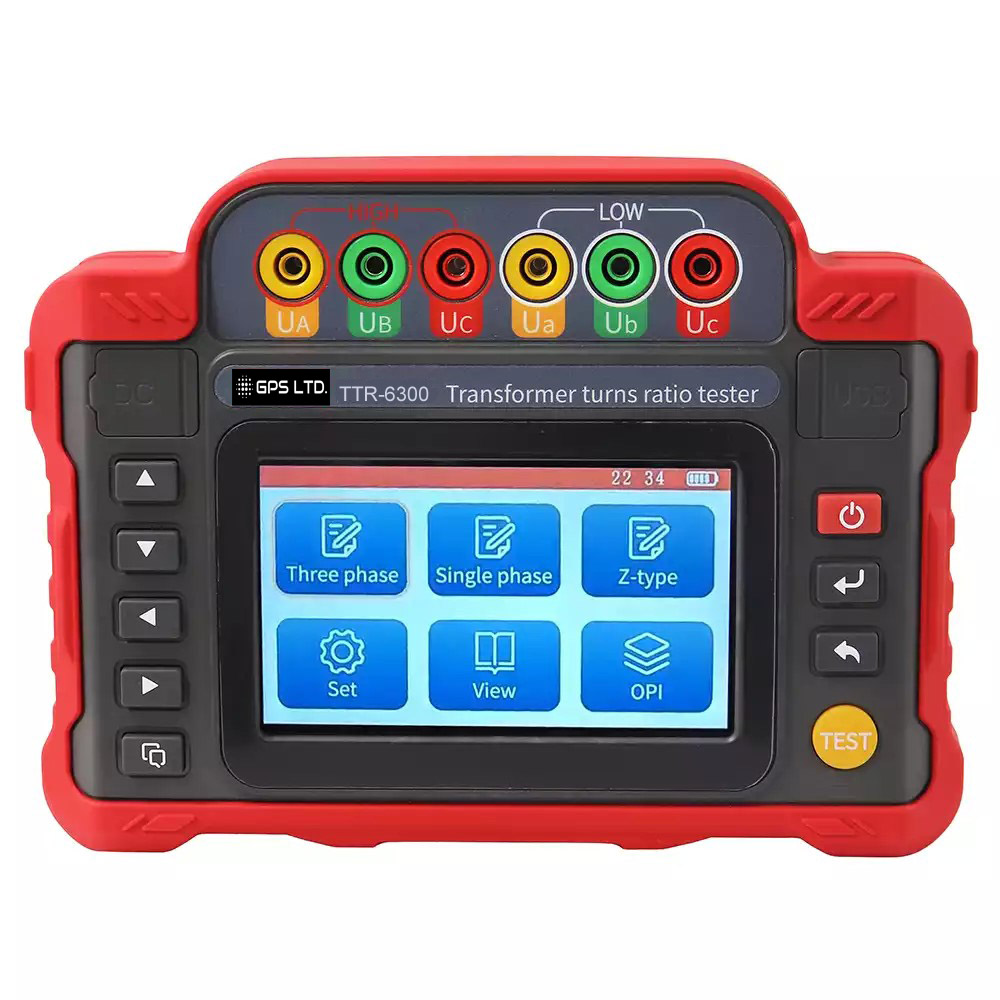

TTR-6300 | Turns Ratio | Transformer turns ratio testing | USB (PC software) | View |

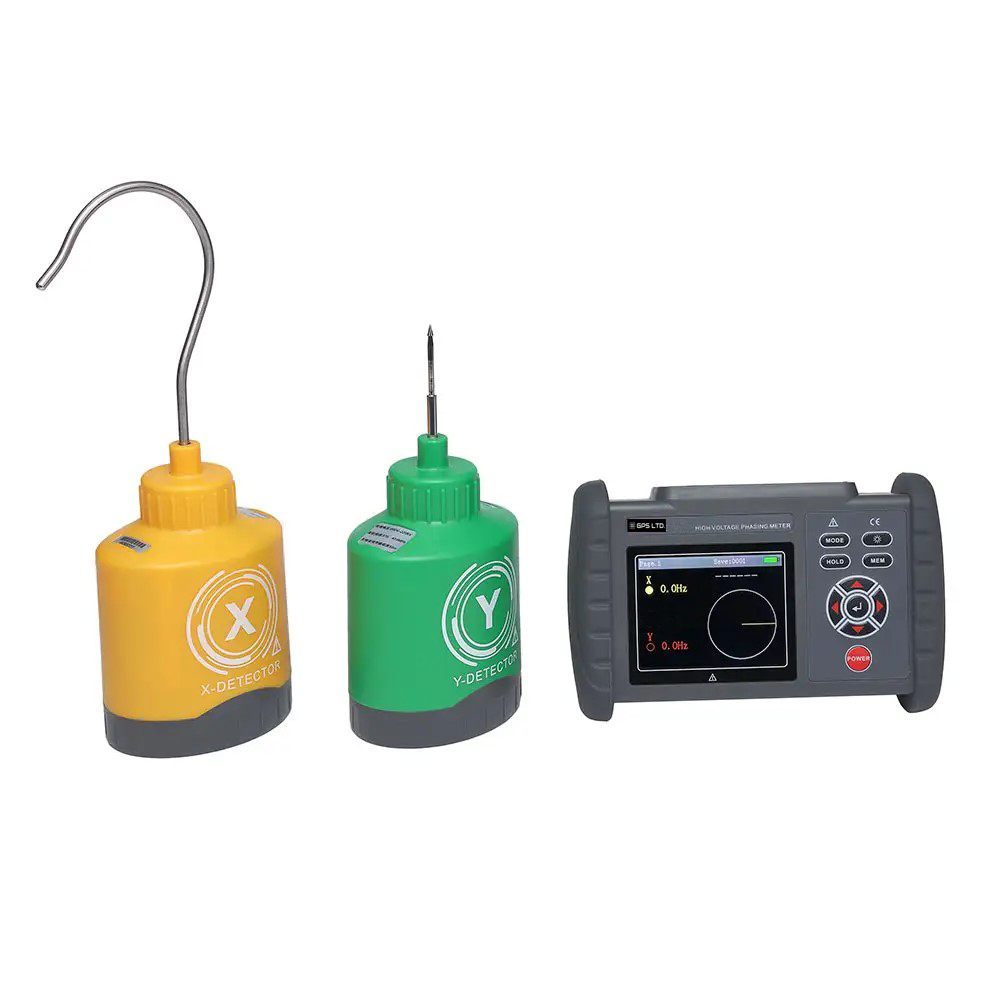

HVT-2800 | HV Phase Detection | Wireless high voltage phase detection | Wireless receiver | View |

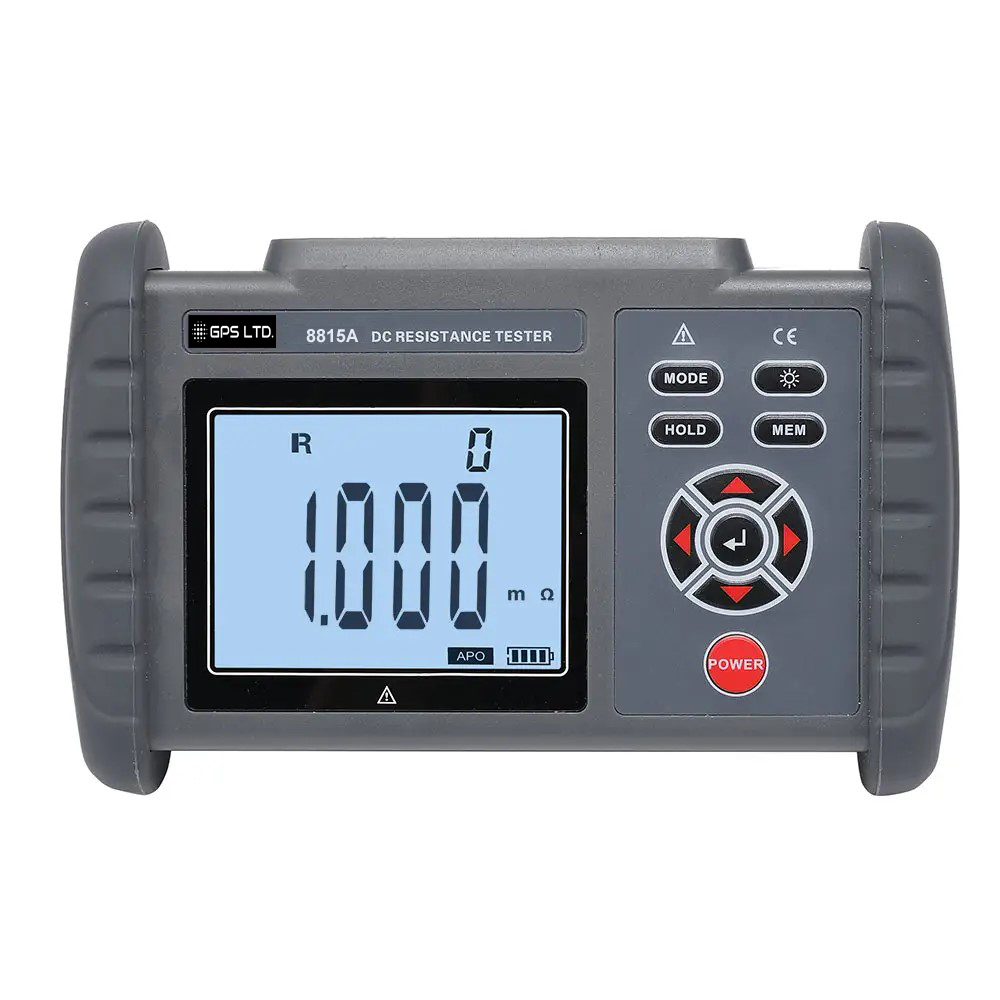

GPS-8815A | Low Resistance | Portable DC low resistance testing | USB | View |

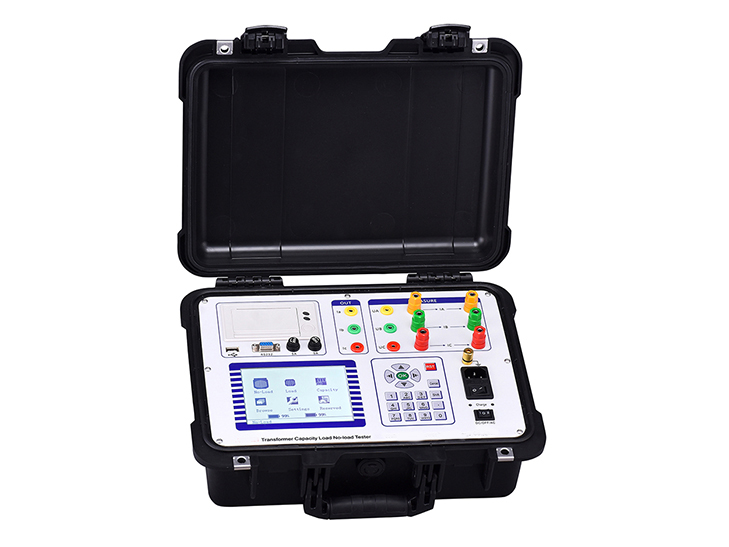

TCT-12C | Capacity Test | Transformer capacity / load / no-load | USB / RS232 | View |
MIT-4500 series | HV Insulation | HV insulation resistance 5/10/15 kV | USB | View |

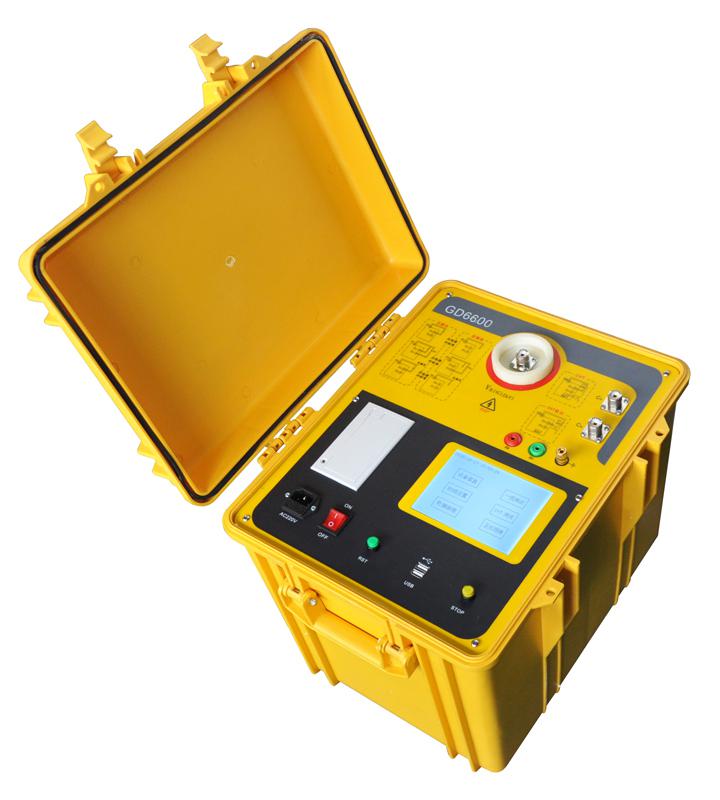

GPS-6800 | Capacitance & tanδ | Capacitance and dissipation factor | USB | View |

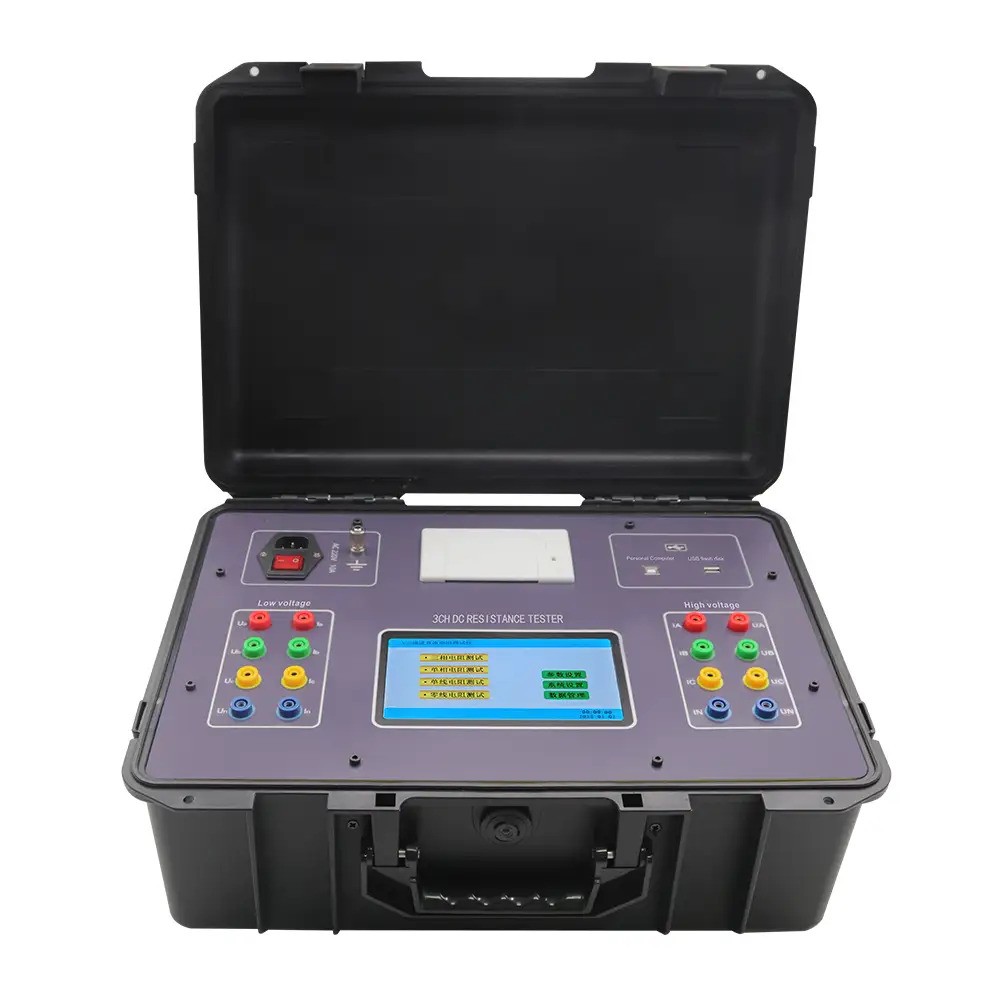

WRT-5660 | Winding Resistance | 3-phase DC resistance testing | USB | View |
GPS-4660C | DC Resistance | DC current resistance testing | USB | View |

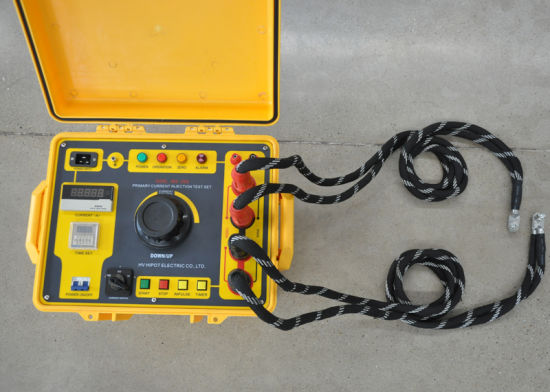

PCT-1000 | Primary Injection | Primary current injection up to 1 kA | — | View |
CRT-100A/200P | Contact Resistance | Contact resistance 50–200 A | USB | View |
PQA-8000 | Power Quality | 3-phase power quality analysis | USB (software) | View |
CBA-III | Breaker Analysis | Circuit breaker timing and speed | USB (software) | View |
CBA-2SFH | SF6 Analysis | SF6 gas analysis on-site | — | View |
How to choose transformer test gear
Start with your task: turns ratio, winding resistance, contact resistance, capacitance/dissipation factor, or primary injection. Then confirm current/voltage range, resolution and portability requirements.
