GPS-3065X
Benchtop Digital Multimeter
6 ½ Dual Display Digital Multimeter
Well-suited for the needs of high-accuracy and high-precision applications measurement
This multimeter has a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too

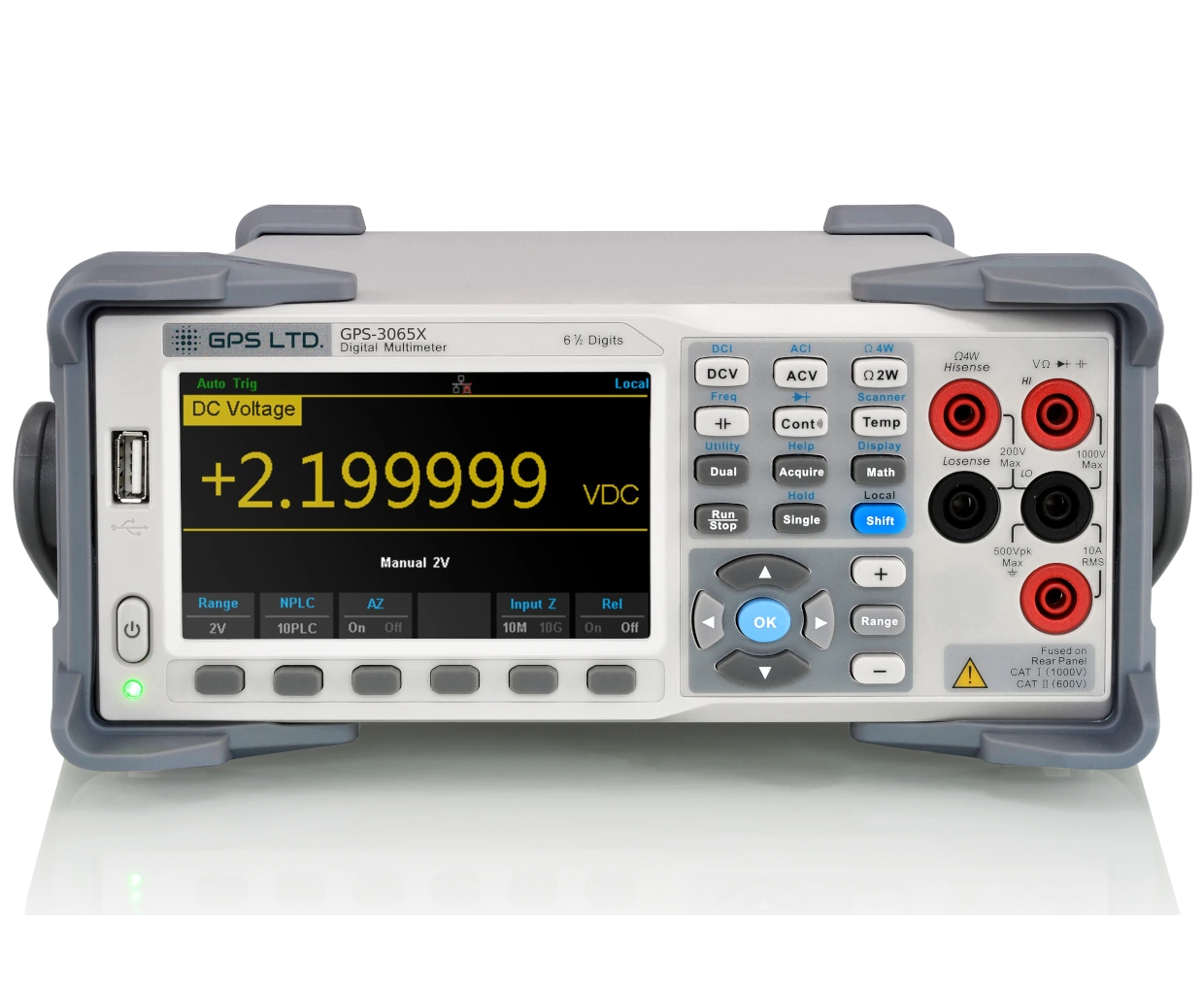

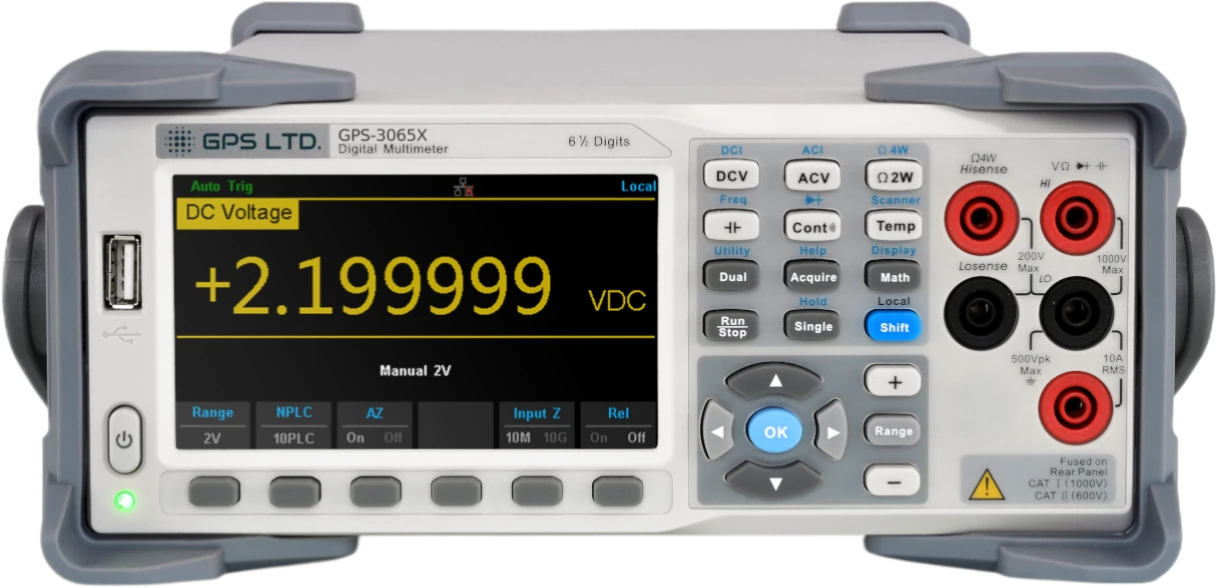

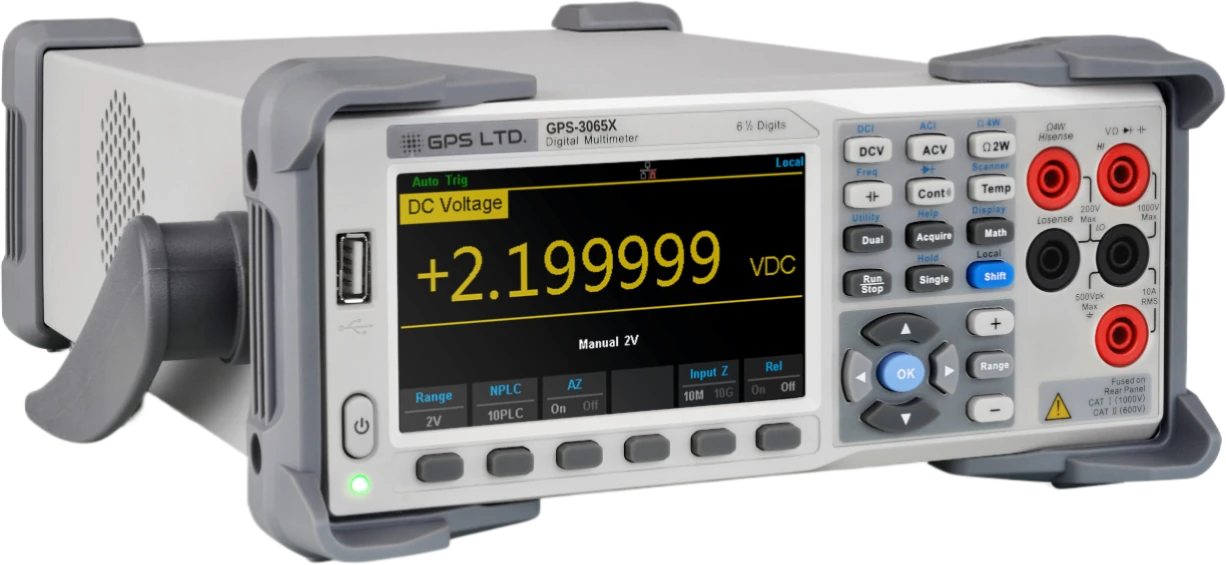

With a large-size display (4.3″ TFT LCD), intuitive, easy-to-use keypad and reliable, consistent results, the GPS-3065X digital multimeter makes it easy to both perform and analyse a wide variety of different electrical testing procedures.
A built-in suite of math functions are also included, with the ability to perform MAX/MIN/AVG testing over a period of time, standard deviation tests, dBm/dB measurements and relative measurements.
It’s also possible to generate a PASS/FAIL histogram, trend charts and bargraphs based on your measurement data.
DC voltage measurement range:
200 mV – 1000 V
AC voltage measurement range:
200 mV – 1000 V
DC current measurement range:
200 µA – 10 A
- Real 6.5 digit display (2,200,000 counts)
- True-RMS AC Voltage and AC Current measuring
- 1 GB NAND flash size, mass storage configuration files and data files
- Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
- Supports double display, Chinese and English menu
- File management (support for U-disc and local storage)
- Built-in cold terminal compensation for thermocouple
- Comes with easy, convenient and flexible sensor measurement control software: EasyDMM
- Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter, etc.
30-Days Protection
Money back guarantee (UK customers only)
24/7 Guarantee
Full after-sales support guarantee
1-Year Warranty
Available on all products
Ordering Information
Support
Extra information relating to this product
No optional accessories available
- Research Lab, Development Lab, Detection and Maintenance, Calibration Lab, Automatic Production Testing
1-year warranty (subject to product registration with GPS LTD).
Visit www.gpslimited.com/register-product
Service and calibration available.
Please contact for more information
