Start with the asset, not the instrument
Transformers, switchgear, joints and live conductors each need different measurements. Pick the asset below and the range narrows to the instruments that work on it.
What are you working on?
These instruments do different jobs rather than the same job to different degrees. Choose the asset and the range narrows to what works on it. Select more than one to see several.
| Model | Asset | Instrument | What it tests | Key ranges | Interfaces | Link to product page |
|---|---|---|---|---|---|---|
| TTR-6300 | Transformers | Turns ratio tester | Turns ratio, excitation current, phase displacement | Ratio 0.9 to 10000 | USB, Bluetooth | View product |
| TCT-12C | Transformers | Capacity and loss tester | Capacity, no-load and load loss, impedance voltage | 30 to 31,500 kVA | USB, panel printer | View product |
| GPS-6800 | Transformers | Capacitance and tan delta | Capacitance and dissipation factor, CVT ratio | 10 kV · 15 pF to 300 nF | USB, panel printer | View product |
| CBA-III | Switchgear & breakers | Circuit breaker analyser | Timing, travel, speed, bounce and coil current | 12 contacts · 4000 ms at 0.1 ms | RS-232, thermal printer | View product |
| CBA-2SFH | Switchgear & breakers | SF6 gas comprehensive tester | Purity, dew point and decomposition products from one draw | Purity 0 to 100% · dew point to −80 °C | USB, thermal printer | View product |
| CRT-100P / 200P | Switchgear & breakers | Contact resistance tester | Contact and loop resistance of switchgear | 100 A or 200 A · to 10 mΩ | USB stick, printer | View product |
| GPS-8815A | Joints & connections | Portable micro-ohmmeter | Joints, bonds, windings and busbar connections | 1 A · 0.001 mΩ to 300 kΩ | USB | View product |
| CRT-4660C | Joints & connections | Portable resistance tester, 20 A | Joints and contacts at fault-level current, battery powered | 20 A · 10 µΩ to 1000 kΩ | USB, Bluetooth | View product |
| HVT-2800 | Live working | Wireless phase detector | Phase agreement between two live conductors | 30 V to 550 kV · 0.1° | Wireless, about 200 m | View product |
The range, by asset
Transformers, switchgear, joints and live conductors.

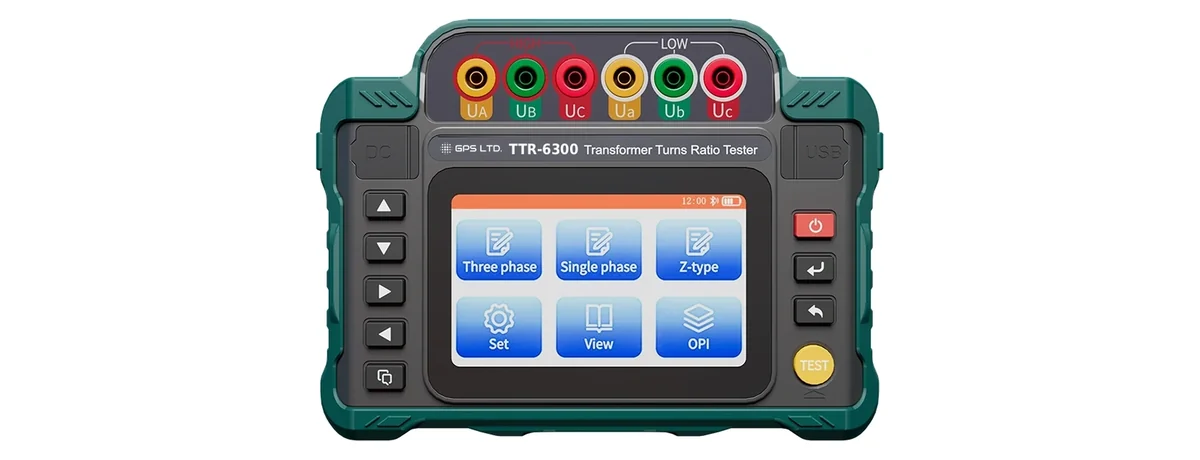

TTR-6300
Transformer Turns Ratio Tester
Turns ratio, excitation current and phase displacement on single-phase, three-phase and Z-type transformers, including PT and CT.

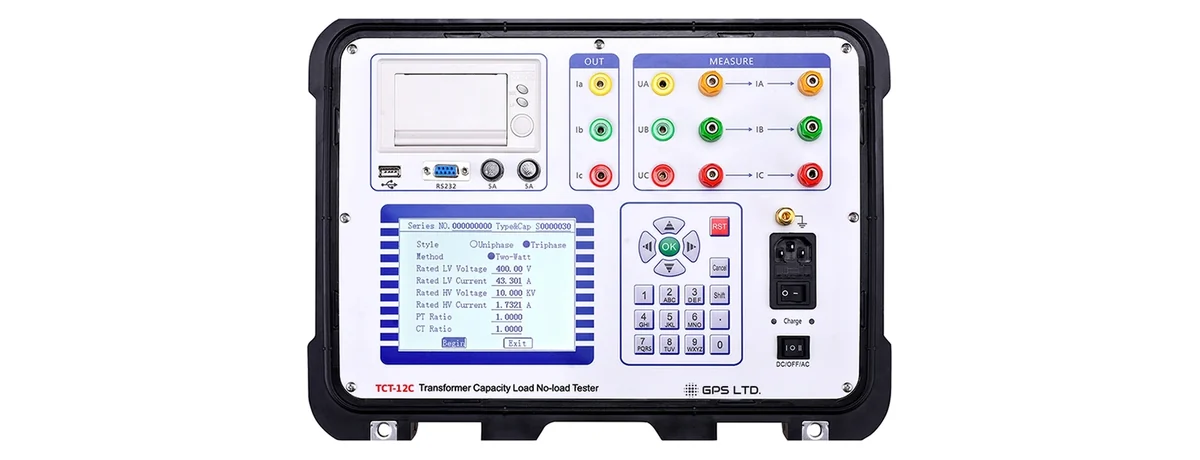

TCT-12C
Capacity, Load and No-Load Tester
Establishes capacity by measurement rather than from a nameplate, alongside no-load and load loss, with five corrections applied automatically.

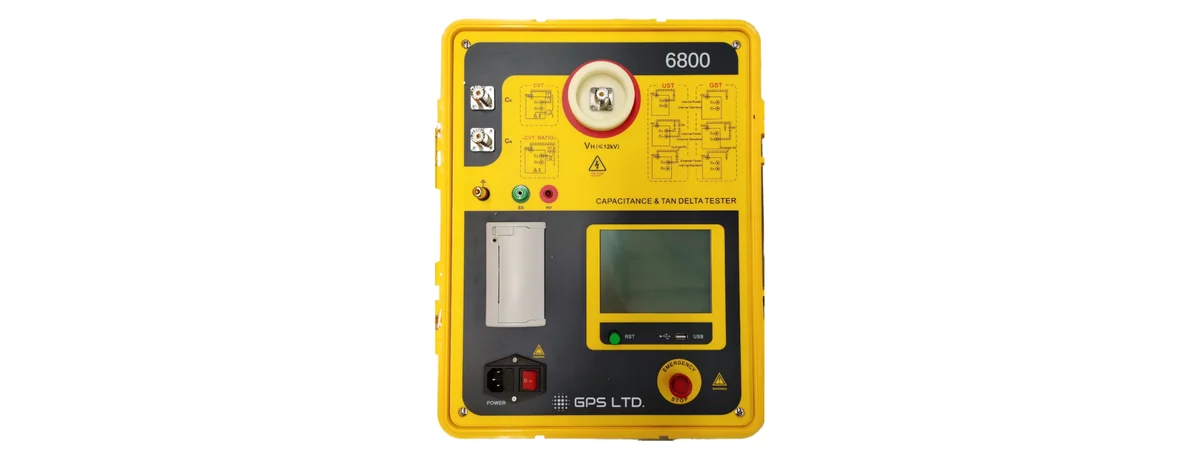

GPS-6800
Capacitance and Dissipation Factor Tester
A 10 kV bridge that balances itself, for transformers and their bushings, breakers, cables, arresters and rotating machines.
CBA-III

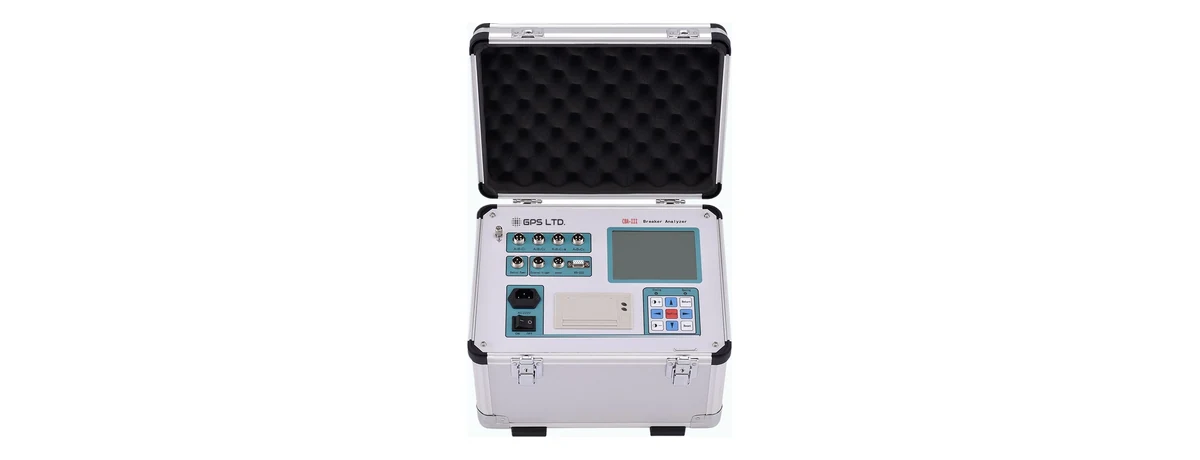

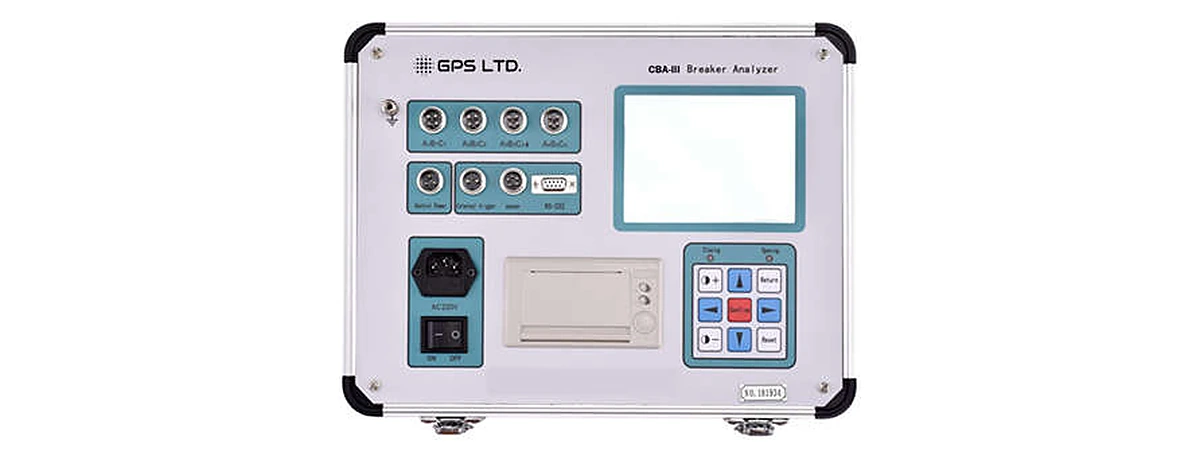

Circuit Breaker Analyser
One operation of the breaker captures timing on twelve contacts, travel and speed, closing bounce and coil current, rather than a separate test for each.

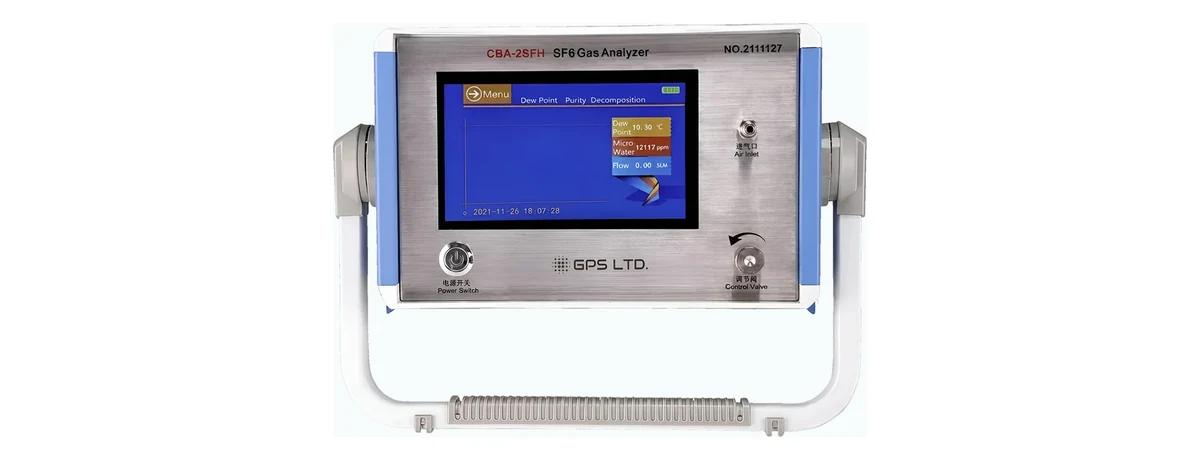

CBA-2SFH
SF6 Gas Comprehensive Tester
Purity, dew point and decomposition products from a single gas draw, so routine testing costs one sample rather than three.

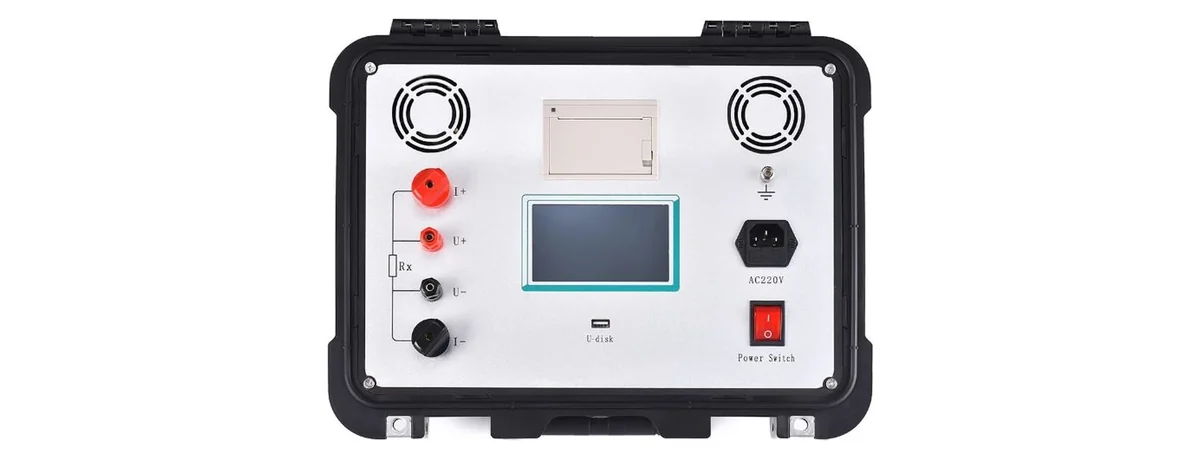

CRT-100P / 200P
Contact and Loop Resistance Testers
Continuous DC at 100 A or 200 A, enough to break through the oxide film on a switch contact that a milliamp bridge would read straight over.

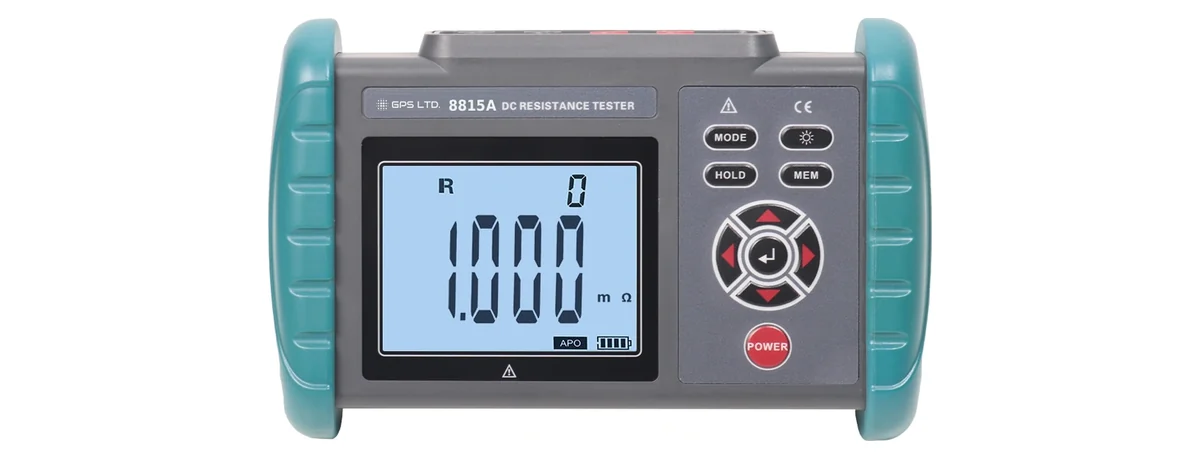

GPS-8815A
Portable DC Low Resistance Tester
A handheld micro-ohmmeter for the joints that carry current, four-wire so the reading is the joint rather than the leads.

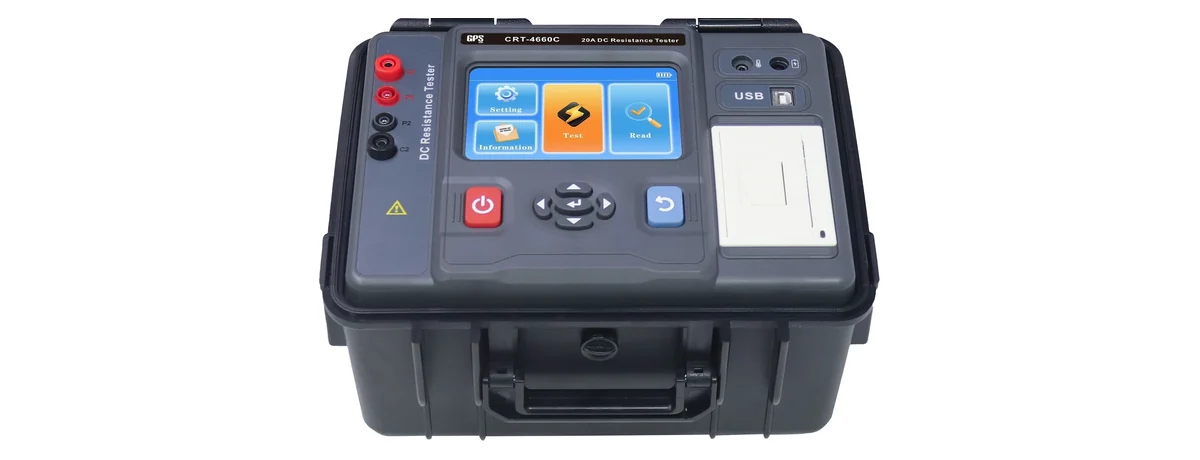

CRT-4660C
Portable DC Resistance Tester, 20 A
Twenty amps through a bolted joint from a battery, with results corrected to 75 °C from the measured temperature and the sample material.

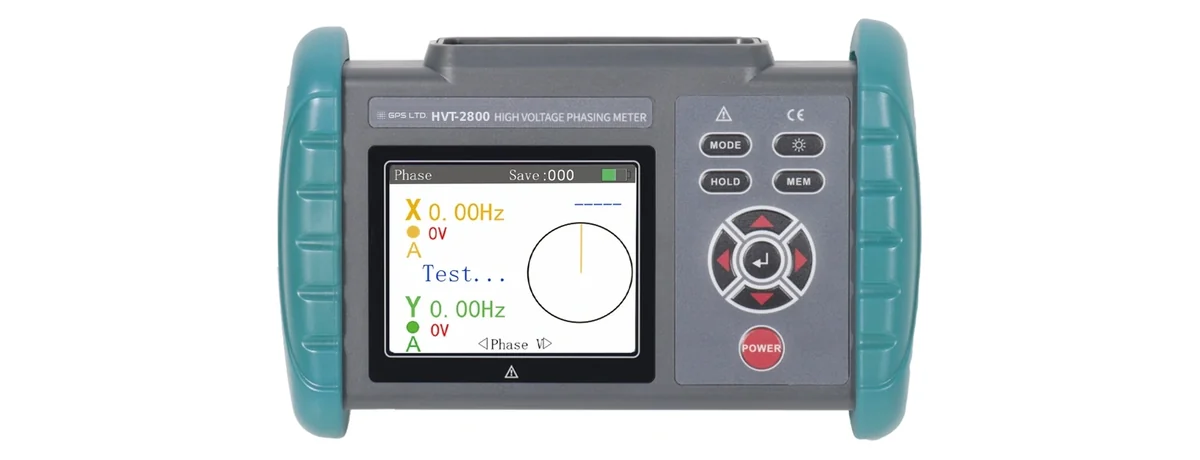

HVT-2800
Wireless High Voltage Phase Detector
Two detectors and one receiver over a 2.4 GHz link, so phase agreement is proved before two circuits are paralleled, and the verdict is spoken aloud.
Four things worth settling first
The ceiling falls as you turn the current or voltage up
It is the most common trap in this category. The GPS-6800 reaches 300 nF at 1 kV but only 60 nF at 10 kV. The CRT-200P reaches 10 mΩ at 50 A but 2.5 mΩ at 200 A. Check the figure at the setting your procedure specifies, not the headline.
A missing nameplate is not a dead end
The TCT-12C establishes transformer capacity by measuring it rather than reading it off a plate, so a unit whose nameplate is gone, painted over or disputed can still be identified on site, and a declared rating can be checked against what the unit is.
Half of these need a socket
The GPS-8815A and CRT-4660C run from internal batteries. The CRT-100P, CRT-200P, TCT-12C and GPS-6800 all need mains at the test point, and the GPS-6800 is a 22.75 kg one-piece set. Worth settling before a site visit, not during one.
The TCT-12C has a load test limit
One instrument performs the load test outright on transformers up to 1600 kVA, or up to 2500 kVA at one third rated current with the result converted. Above that an external CT extends the range. No-load testing is not subject to the same limit.
