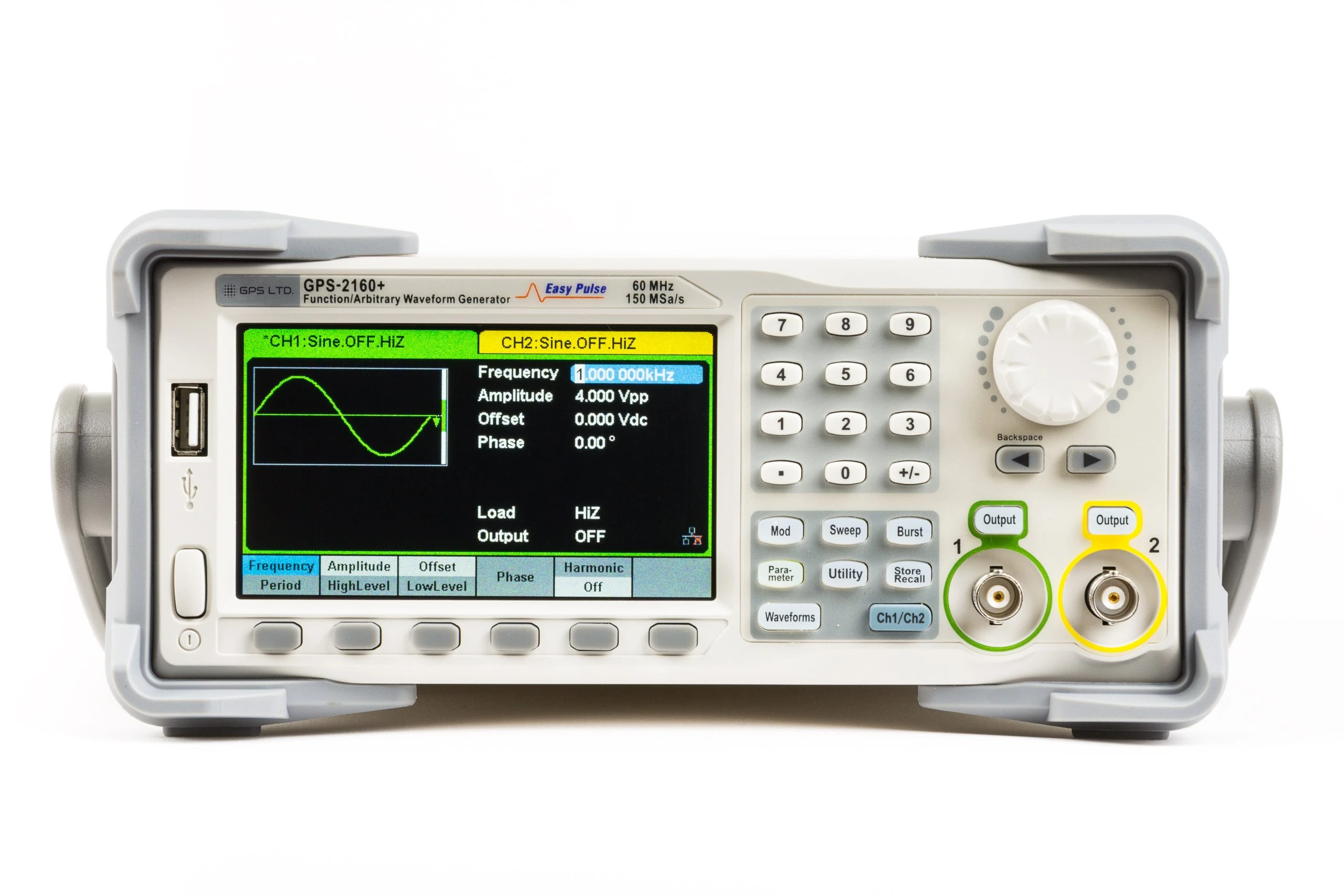

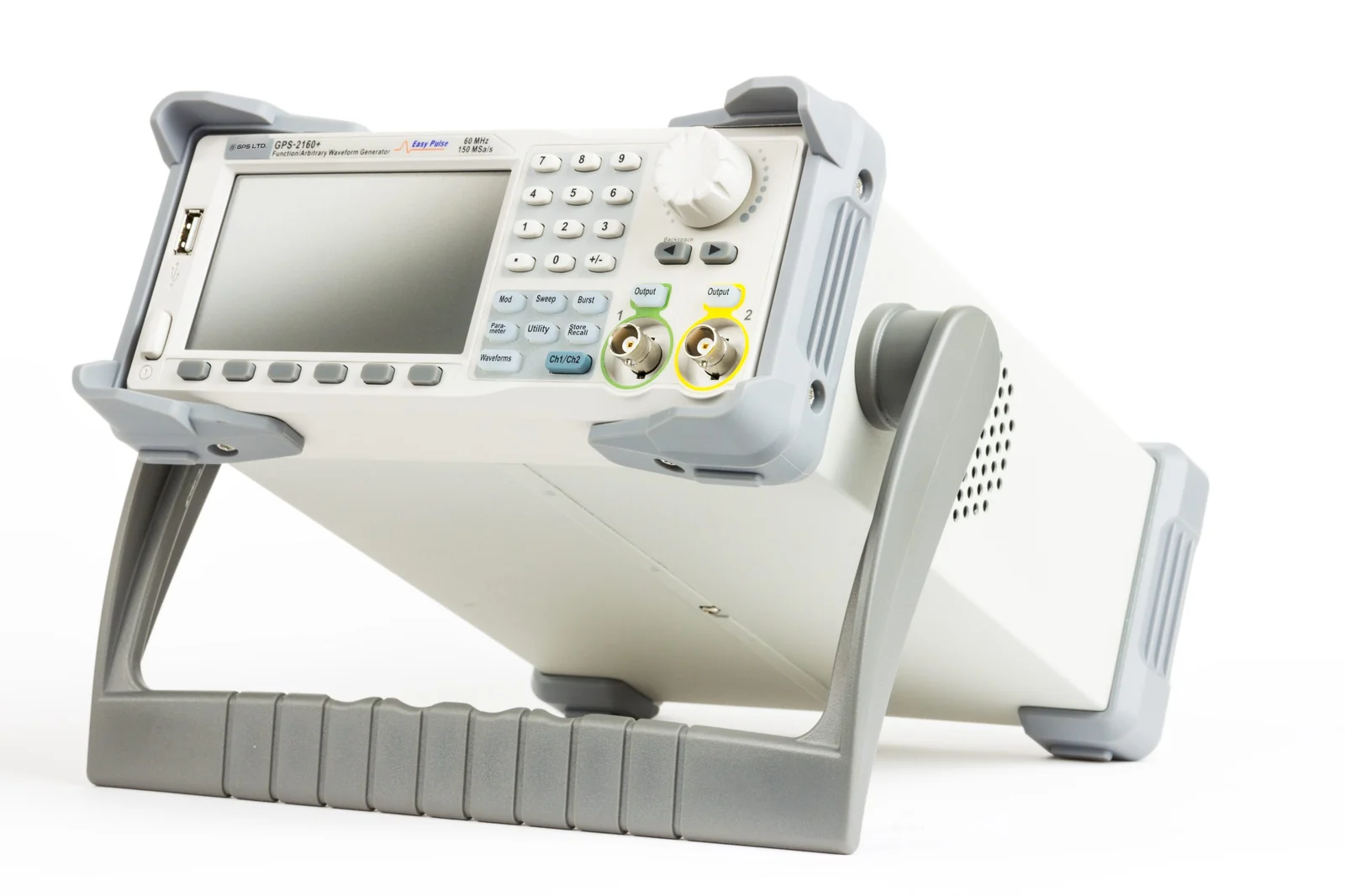

Function / ARB Waveform Generator
GPS‑2100+ Series
Dual‑channel function & arbitrary waveform generators from 30–60 MHz with advanced modulation, deep memory, and easy front‑panel control.
Precision Pulse Technology
Clean, narrow pulses
Generate fast‑edge pulses with fine width and delay control for timing, digital logic and trigger characterization.
Jitter‑aware triggering
Stable internal clocking and flexible trigger modes help reduce timing jitter in repetitive pulse tests.
Pulse modulation
Combine pulse with AM/FM/PM/FSK and burst for stress testing and protocol stimulation.
Where it excels
Education & labs
Dual‑channel operation simplifies demos and experiments.
Embedded work
Stimulate MCU/FPGA inputs with clean waveforms and modulation.
Service & repair
Compact bench footprint, quick presets and sweep modes.
Features & benefits
Up to 60 MHz output
Sine, square, ramp, pulse and noise plus ARB waveforms.
Dual channels
Independent or coupled for amplitude/phase.
Modulation & sweep
AM/FM/PM/FSK/PSK, burst modes and linear/log sweep.
Arbitrary waveforms
ARB editor and USB import for custom signal creation.
Connectivity
USB device/host for remote control and file transfer.
Models & key specifications
| Model | Channels | Frequency | Sample rate | Memory | Order code |
|---|---|---|---|---|---|
| GPS‑2130+ | 2 | Up to 30 MHz | Up to 150 MSa/s | Up to 16 kpts | 201303 |
| GPS‑2160+ | 2 | Up to 60 MHz | Up to 150 MSa/s | Up to 16 kpts | 201600 |
Specs are typical; see datasheet for full details and options.
