GPS-1000D series
GPS-1000D Series Tablet Oscilloscopes
A full analysis bench that fits in a laptop bag. An 8″ multi-touch display, 70 Mpts memory depth and up to 5 hours of battery life, with 100 or 200 MHz bandwidth options.
8″ multi-touch
Pinch, swipe and drag instead of menu-driven buttons.
70 Mpts memory depth
Long captures without losing detail on zoom.
130,000 wfms/s
High refresh rate catches intermittent events.
Up to 5 hours
Battery powered and genuinely field-portable.
Where the GPS-1000D excels
Built for work away from the bench, where mains power and desk space aren’t a given.
Field service
Battery powered, one-piece, no trolley or mains needed.
Embedded system testing
UART, CAN, LIN, SPI and I²C decode built in.
Automotive diagnostics
CAN and LIN decode, taken to the vehicle rather than the bench.
Industrial signal analysis
Deep memory for long, low-frequency plant signals.
A full analysis bench you can carry
Touch-driven operation, deep memory and on-board storage, without giving up measurement capability.
Multi-touch tablet interface

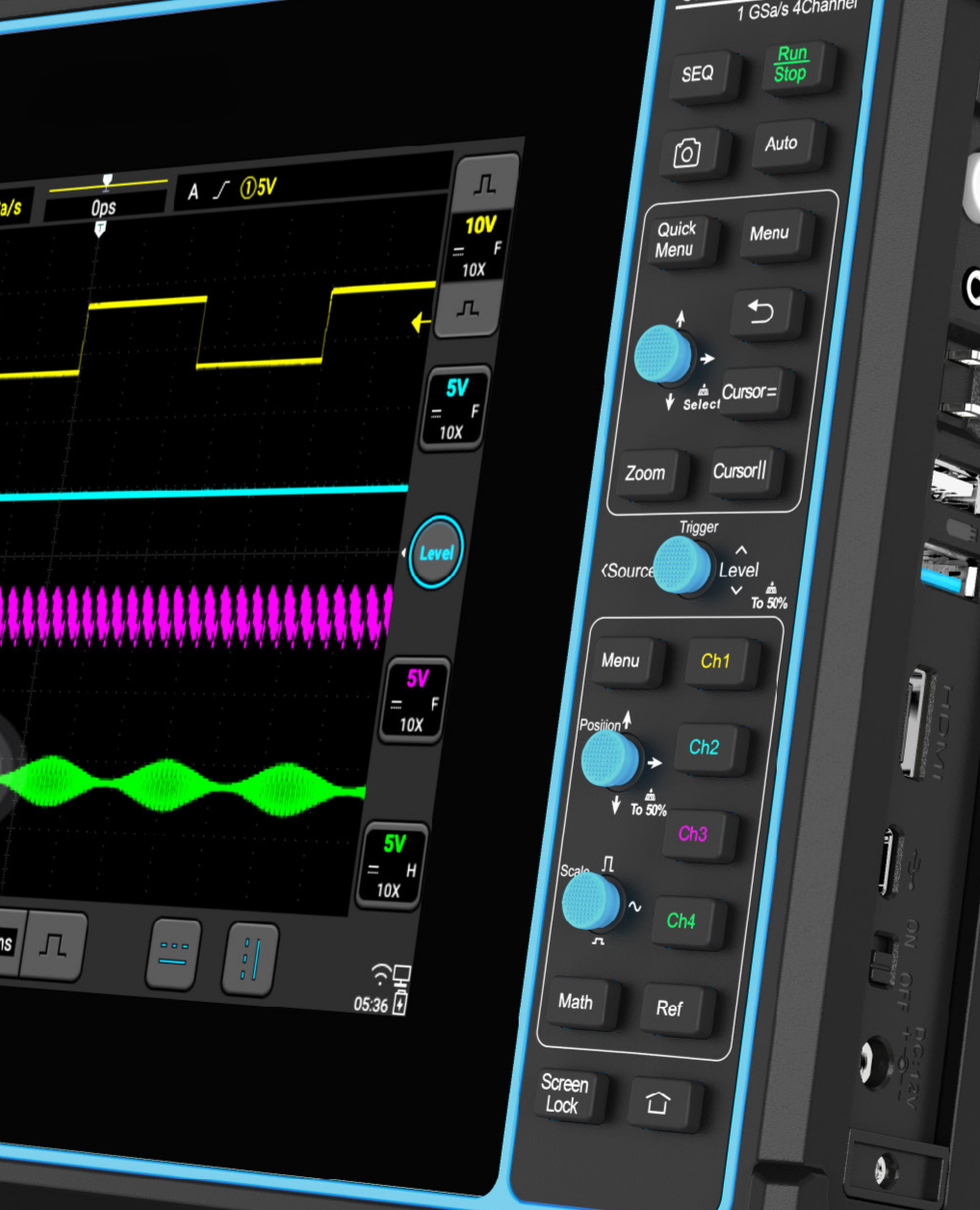

An 8″ capacitive touchscreen with pinch-to-zoom, swipe and drag, running an Android-based interface. Classic control buttons are retained alongside it, so you can work by touch, by button, or both.
70 Mpts memory depth
Capture up to 70 ms at the full 1 GSa/s sampling rate and still zoom in without losing detail. Paired with a 130,000 wfms/s update rate, intermittent faults are far less likely to slip past unseen.
Protocol decoding & triggers
Decodes UART, CAN, LIN, SPI and I²C as standard. Trigger types cover edge, pulse width, logic, N edge, runt, slope, time-out and video, with 31 automated measurements and up to 10 shown on screen at once.
32 GB internal storage
Save waveforms, screenshots and video directly on the instrument rather than juggling USB sticks. Unlimited stored waveforms with renaming, four internal reference waveforms and 10 saved instrument setups.
Wi-Fi, HDMI & remote control
Wi-Fi, HDMI 1.4, USB 3.0 Host, USB Type-C and LAN on board. Drive the instrument remotely from PC software or Android and iOS apps, or send it SCPI commands as part of an automated test setup.
Built for the field
A 7500 mAh battery gives up to 5 hours away from mains, and a power-off switch lock prevents the instrument waking in transit. The intelligent bi-directional UPI probe interface handles probe setup automatically.
Set up anywhere, in seconds

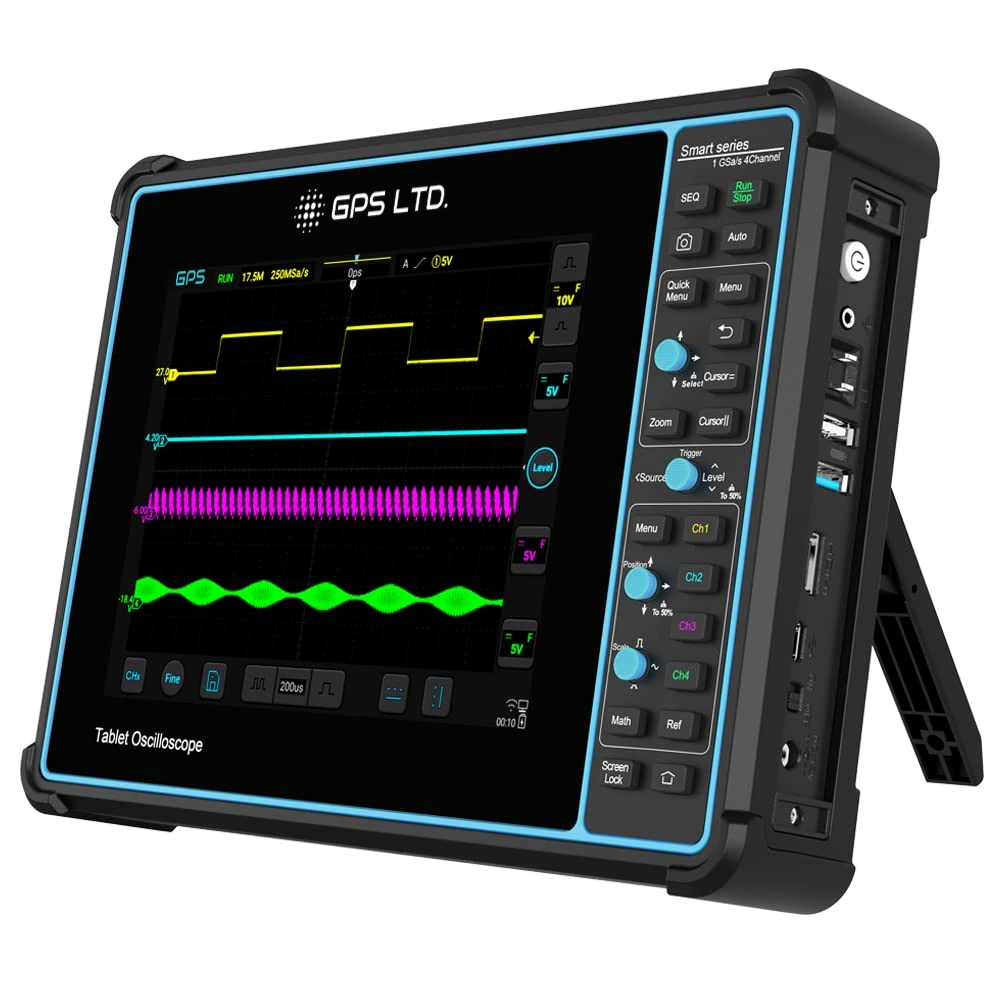

A fold-out rear stand props the instrument at a working angle on any flat surface, so there’s no trolley to wheel out and no mains socket to find. The carry handle and power-off switch lock mean it travels between jobs without waking in the bag.
- Fold-out stand for bench, vehicle or plant-room use
- Runs up to 5 hours on the internal 7500 mAh battery
- 1.9 kg all in — no separate probes case required
- Optional nylon carry bag or hardshell suitcase for transit
Which model do you need?
Choose your bandwidth — we’ll show you the exact model and part number.
Models & specifications
Two models — the 100 MHz unit is 4-channel, the 200 MHz unit is 2-channel. Same platform, display and accessories throughout.
| Model | Bandwidth | Channels | Rise Time | Max Sample Rate | Memory Depth | Display | Part No. |
|---|---|---|---|---|---|---|---|
| GPS-1104D | 100 MHz | 4 | ≤3.5 ns | 1 GSa/s | 70 Mpts | 8″ multi-touch (800×600) | 182401 |
| GPS-1202D | 200 MHz | 2 | ≤1.75 ns | 1 GSa/s | 70 Mpts | 8″ multi-touch (800×600) | 182202 |
Technical specifications
| Bandwidth options | 100 MHz (GPS-1104D) · 200 MHz (GPS-1202D) |
| Analogue channels | 4 (GPS-1104D) · 2 (GPS-1202D) |
| Max sampling rate | 1 GSa/s real-time |
| Memory depth | 70 Mpts · up to 70 ms at full sample rate |
| Waveform capture rate | 130,000 wfms/s |
| Rise time | ≤3.5 ns (100 MHz) · ≤1.75 ns (200 MHz) |
| Vertical resolution | 8-bit · noise floor ≤90 µVrms (1 mV/div, 1 MΩ) |
| Input sensitivity | 1 mV/div to 10 V/div (1 MΩ input) |
| Max input voltage | CAT I 300 Vrms (1 MΩ input) |
| Trigger types | Edge, Pulse Width, Logic, N Edge, Runt, Slope, Time Out, Video |
| Serial decoding | UART, CAN, LIN, SPI, I²C (standard) |
| Measurements | 31 automated types, up to 10 on screen · 6-digit hardware frequency counter |
| Math | Add, subtract, multiply, divide · FFT with rectangular, Hamming, Hanning and Blackman-Harris windows |
| Time base | 2 ns/div to 1 ks/div · accuracy ±20 ppm |
| Display | 8″ TFT-LCD multi-point capacitive touchscreen (800×600), 14×10 divisions |
| Operation | Touch, button, or touch and button combined |
| Internal storage | 32 GB · local and USB drive · unlimited stored waveforms |
| Interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI 1.4, DC input · Wi-Fi |
| Remote control | PC software, Android and iOS apps, SCPI |
| Battery | 7.4 V, 7500 mAh Li-ion · up to 5 hours run time |
| Power | 100–240 VAC, 50/60 Hz, <60 W · 12 V DC 4 A adapter |
| Dimensions / mass | 265 × 192 × 50 mm · 1.9 kg with battery |
| Operating conditions | 0°C to 45°C, ≤85% RH, ≤3000 m altitude |
What’s in the box
- GPS-1000D main unit8″ multi-touch display
- Passive probes10X, one per channel
- AC power cord220V/110V selectable
- Certificate of calibration1-year warranty
