GPS-5504ZX
High Resolution Digital Storage Oscilloscope
Digital Storage Oscilloscope

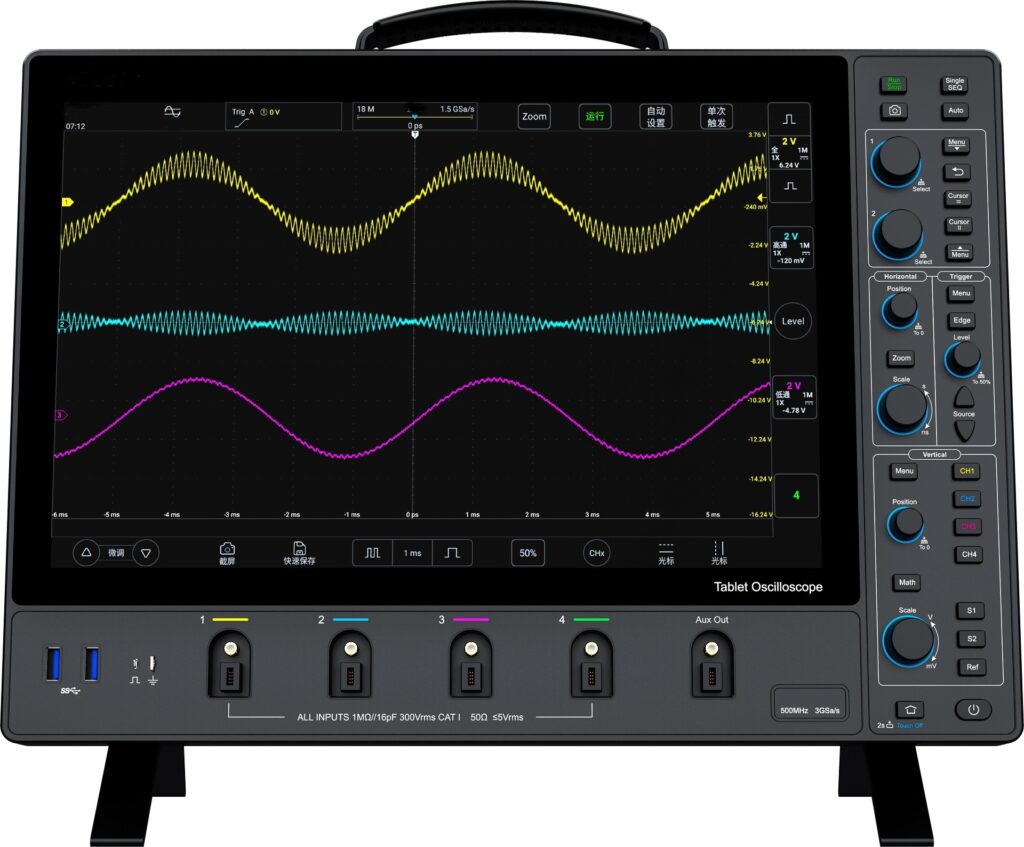

Our powerful next generation oscilloscope offering a bandwidth of 500 MHz, 4 channels, and a maximum real-time sampling rate of 3GSa/s
The GPS-5504ZX is an advanced oscilloscope that combines versatility, high performance, and innovative technology, making it an ideal tool for engineers, researchers, and educators involved in electronics testing and analysis. With a bandwidth of 500 MHz and a mighty sampling rate of up to 3 GSa/s, this oscilloscope captures fast and intricate signal changes with remarkable fidelity.
The device features a vibrant 14-inch capacitive touchscreen display that enhances user interaction, allowing for easy zooming, panning, and waveform capturing, as well as the ability to navigate through menus fluidly. It boasts extensive triggering options, advanced mathematical functions, and automatic measurement features, facilitating precise diagnostics and in-depth waveform analysis. Connectivity is seamlessly integrated with LAN, for data sharing and remote access, while the device also supports USB for extended storage capabilities. Designed for durability and functionality, the 5504ZX is perfect for applications ranging from educational settings to R&D laboratories and field services, empowering users to refine their electronic designs and troubleshoot effectively.
With its robust feature set and user-friendly interface, the GPS-5504ZX oscilloscope is indeed a valuable asset for anyone involved in the demanding world of electronics.
Smooth operation
14'' fully touch interactive display. All operations can be completed by touch for a more intuitive experience.
User-friendly interface
With over 10 years of UI design experience, the 5504ZX simplifies all user interfaces so that engineers can be up and running within 5 minutes.
Deep memory
No reduction in performance even with two channels opened at the same time. The signals will still maintain excellent fidelity even over a long period of time.
Segmented storage acquisition
Segmented storage acquisition can capture the target signal and allows to play back captured ones, effectively captures target signals multiple times over a long period of time.
Low noise
Even at its full bandwidth of 500M, the noise floor is still less than 90μVrms, allowing engineers to accurately capture weak but important signals during daily debugging and signal analysis.
Faster time-base adjustment
Traditional oscilloscopes need to step in a sequential manner when adjusting the time base. In addition to traditional sequential steps, the scope also has a time base matrix, allowing user to select any time base in one click.
Hardware digital filtering
Hardware digital filtering can effectively filter out interference and noise, improving signal accuracy. Digital filtering can selectively pass or block signal components within a specific frequency range.
Serial BUS decoding & analysis
The 5504ZX comes as standard with RS-232/422/485/ UART, CAN, LIN, CAN FD, SPI, I2C, ARINC-429, 1553B. With the TXT decoding text mode, the data can be transferred to CSV format.
- Max. 500 MHz bandwidth
- 4 analogue input channels
- 8-bit vertical resolution
- 3-GS/s sampling
- 360-Mpts memory depth
- 14-inch/35.6-cm touchscreen, 1920×1200 resolution
- Supports remote control and HDMI
- Extremely compact desktop form factor
Included in delivery
GPS-5504ZX oscilloscope, 4x passive probes, 4x BNC adapters, mains adapter, mains plug, bus decoder (CAN, CAN-FD, LIN, SPI, I2C, UART, 1553B, 429)
