GPS-2000XE series

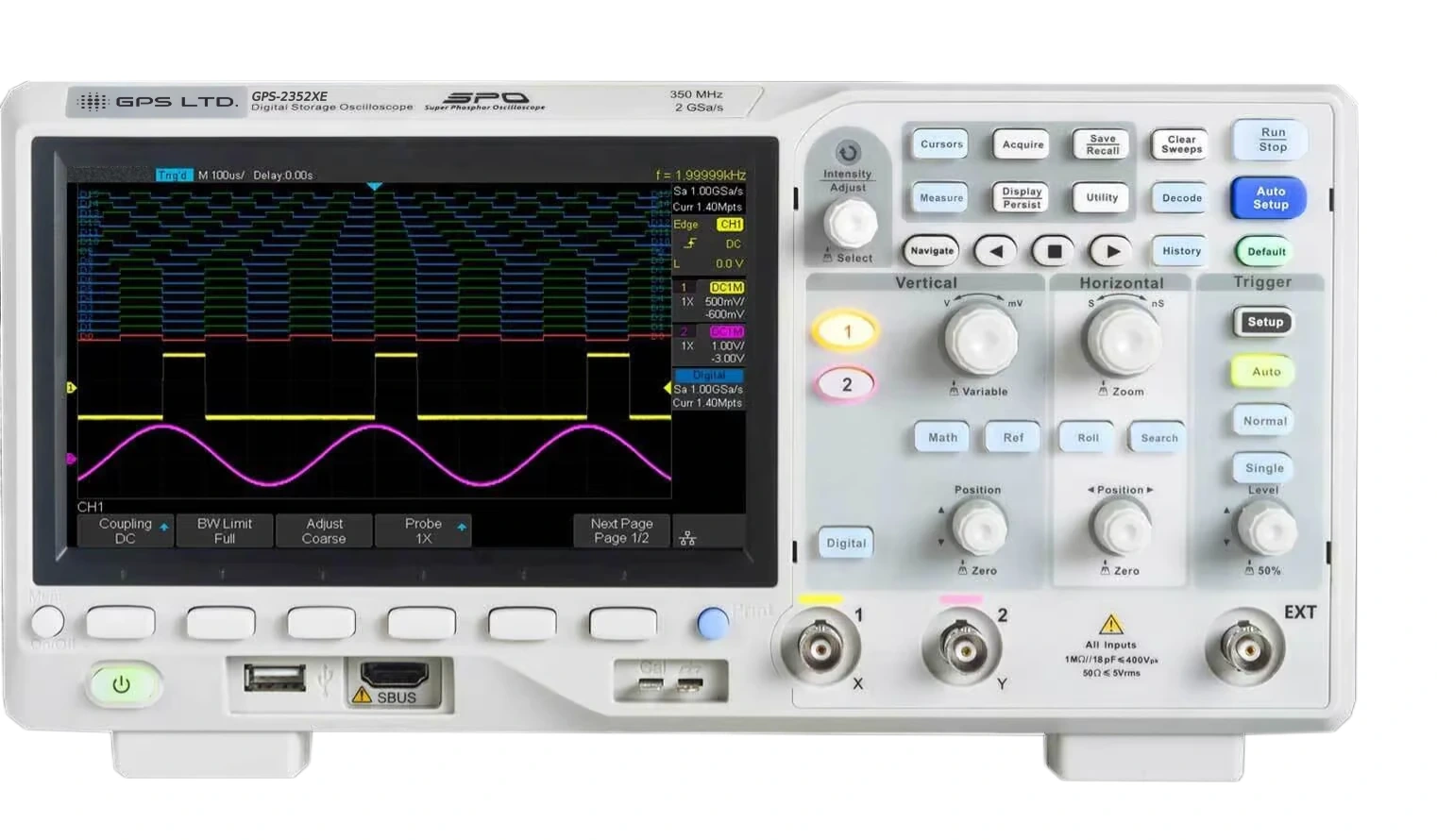

GPS-2000XE Series Digital Storage Oscilloscopes
Plug-and-play, all-in-one series with real-time sampling up to 2 GSa/s, bandwidth up to 350 MHz and 28 Mpts record length.
Flexible bandwidths
200 or 350 MHz models cover advanced lab and field needs.
Up to 2 GSa/s
Capture fast transients with confidence.
28 Mpts record length
Resolve long, detailed waveforms accurately.
110,000 wfms/s
High refresh rate catches instantaneous signals.
Where the GPS-2000XE excels
Built for automotive, aerospace, industrial and utility work that demands more headroom.
Automotive & aerospace
CAN & LIN decode with deep memory for vehicle bus diagnostics.
High-speed debugging
2 GSa/s sampling with optional 16-channel MSO for digital work.
Power & SMPS
Deep memory and low noise reveal switching details and transients.
Service & production
Masked Pass/Fail tests and intelligent triggers streamline checks.
Advanced visualisation & analysis
Bright Colour Temperature Mode
Intensity grading highlights waveform density — frequent events appear warmer, rare events cooler — so you can spot jitter, runt pulses and intermittent glitches at a glance.
High-Resolution FFT
1 Mpt FFT resolution — against the usual 16 kpts — for far more accurate spectral analysis of complex signals.
Intelligent Triggers
Go beyond edge triggers with pulse width, runt, timeout and slope options to isolate complex events quickly — reducing time to root cause.
Sequence & History
Segmented acquisition splits the record into up to 80,000 segments with almost no dead time between them, so a rare event is captured rather than missed. History playback then steps back through 80,000 stored frames with timestamps.
Hardware Pass / Fail
Mask testing runs in hardware at up to 40,000 decisions per second, against a user-defined template. Fast enough for production line screening and long-term unattended monitoring rather than spot checks.
Bode Plot
Sweep a source and plot amplitude and phase against frequency, from 10 Hz with a scan bandwidth to 120 MHz over 500 points. A vari-level mode measures power supply control loop response (PSRR) directly.
Which bandwidth do you need?
Choose your bandwidth — we’ll show you the exact model and part number.
Models & specifications
Two bandwidths, both 2-channel — same platform, same accessories, same optional modules.
| Model | Bandwidth | Channels | Max Sample Rate | Memory Depth | Display | Serial Decode |
|---|---|---|---|---|---|---|
| GPS-2202XE | 200 MHz | 2+EXT | 2 GSa/s (1ch) / 1 GSa/s (2ch) | 28 Mpts/Ch (1ch) / 14 Mpts/Ch (2ch) | 7″ TFT (800×480) | I2C, SPI, UART/RS232, CAN, LIN |
| GPS-2352XE | 350 MHz | 2+EXT | 2 GSa/s (1ch) / 1 GSa/s (2ch) | 28 Mpts/Ch (1ch) / 14 Mpts/Ch (2ch) | 7″ TFT (800×480) | I2C, SPI, UART/RS232, CAN, LIN |
Technical specifications
| Bandwidth (−3 dB) | 200 MHz (GPS-2202XE) · 350 MHz (GPS-2352XE) |
| Channels | 2 + EXT · DC, AC and GND coupling |
| Max sampling rate | 2 GSa/s single channel · 1 GSa/s two channels |
| Record length | 28 Mpts/channel interleaved · 14 Mpts/channel non-interleaved |
| Vertical resolution | 8-bit · ERES enhancement to 0.5, 1.5, 2, 2.5 or 3 additional bits |
| Vertical scale | 500 µV/div to 10 V/div in 1-2-5 steps (1× probe) |
| Offset range | ±2 V from 500 µV to 100 mV/div · ±20 V to 1 V/div · ±200 V to 10 V/div |
| Input | 1 MΩ ±2% ∥ 18 pF ±2 pF, or 50 Ω ±2% · maximum 400 Vpk at 1 MΩ, 5 Vrms at 50 Ω · bandwidth limit 20 MHz ±40% |
| Accuracy & noise | DC gain ≤±3.0% from 5 mV/div to 10 V/div · noise ST-DEV ≤0.1 division at or above 2 mV/div · SFDR ≥35 dB |
| Rise time | 1.0 ns typical (GPS-2352XE) · 1.8 ns typical (GPS-2202XE) · overshoot <10% |
| Timebase | 500 ps/div to 100 s/div · accuracy ±25 ppm · channel skew <100 ps · roll mode 50 ms/div to 100 s/div |
| Waveform capture rate | 110,000 wfm/s normal · 400,000 wfm/s sequence mode · 256-level intensity grading and colour temperature display |
| Acquisition modes | Normal, peak detect (1 ns), average (4 to 1024) and ERES · sin(x)/x or linear interpolation · sequence mode to 80,000 segments · history playback of 80,000 frames |
| Trigger types | Edge, slope, pulse width, window, runt, interval, dropout, pattern and video (NTSC, PAL and HDTV to 1080p) |
| Trigger system | Auto, normal and single · level ±4.5 divisions internal, ±0.6 V EXT · holdoff 80 ns to 1.5 s · jitter <100 ps · DC, AC, LF reject, HF reject and noise reject coupling |
| Serial decode | I²C, SPI, UART/RS-232, CAN and LIN · triggering and decoding, both standard |
| Measurements | 38 automatic parameters · 4 displayed at once, 5 in the statistics table · screen or gated region · manual and tracking cursors · hardware 6-digit frequency counter |
| Maths & FFT | Addition, subtraction, multiplication, division, differential, integral and square root · 1 Mpts FFT with peaks and markers · rectangular, Blackman, Hanning, Hamming and Flattop windows |
| Analysis tools | Hardware pass/fail to 40,000 decisions per second with a user-defined mask · Bode plot from 10 Hz, 500 Hz to 120 MHz scan · search and navigate |
| Display & interfaces | 7″ TFT-LCD, 800×480 · USB Host, USB Device (USBTMC), LAN (VXI-11), pass/fail and trigger out · SCPI, Telnet and socket control · web browser control |
| Options | 16-channel MSO · 25 MHz USB arbitrary waveform generator (SAG1021I) · USB Wi-Fi adaptor · rack mount kit |
| Power | 100 to 240 Vrms, 50/60 Hz · 100 to 120 Vrms at 400 Hz · 50 W maximum |
| Dimensions & mass | 312 × 151 × 132.6 mm (l × h × w) · 2.6 kg net, 3.8 kg gross |
| Operating conditions | 0°C to 40°C · storage −20°C to 60°C · 85% RH at 40°C · to 3000 m |
What’s in the box
- GPS-2000XE main unit7″ display
- Two passive probesPP215 at 200 MHz · SP2035 at 350 MHz
- Power cord & USB cablePC connectivity
- Calibration certificateSupplied with the instrument
- Quick start guideEasyScopeX software · 12-month warranty
