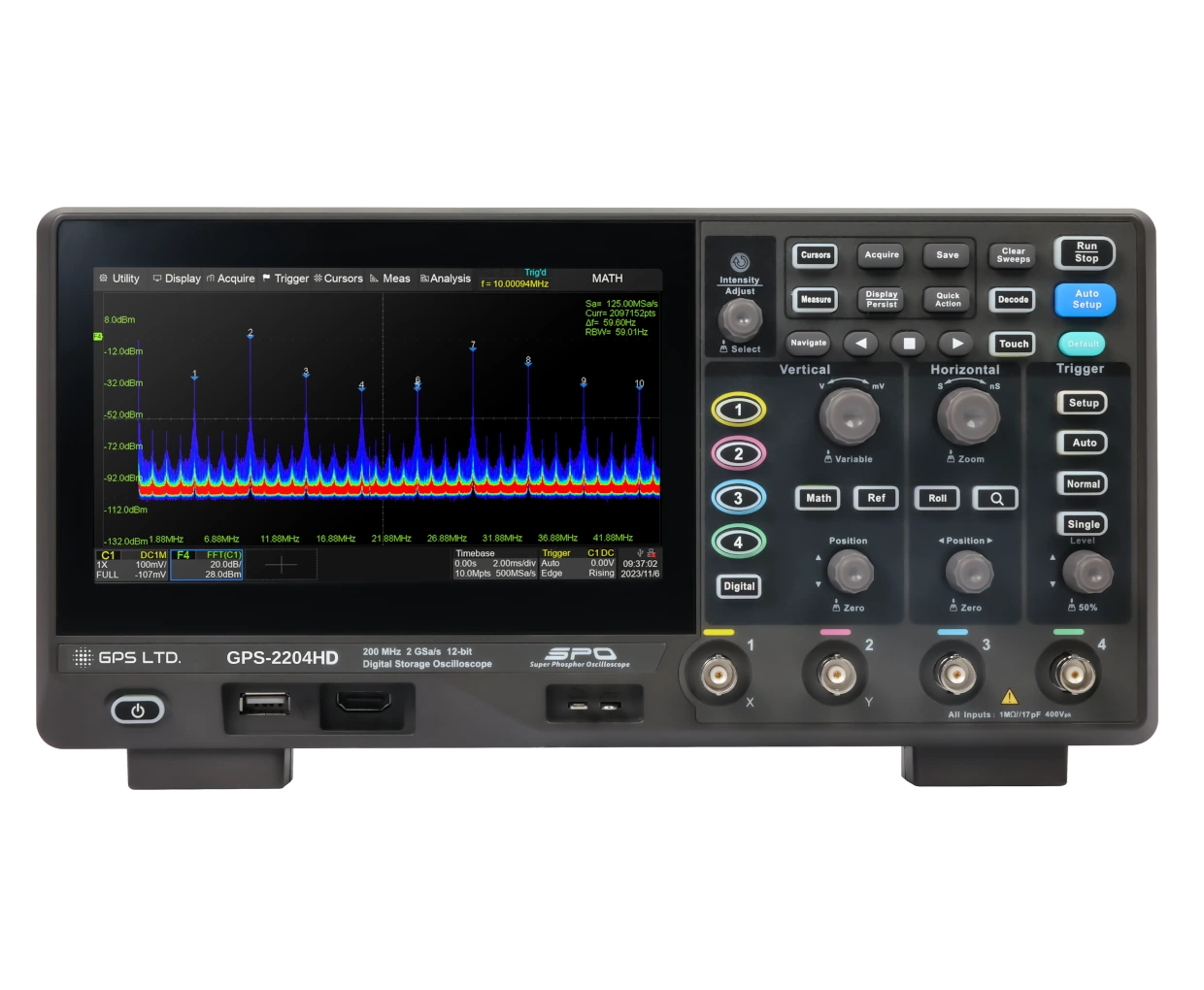

GPS-2000HD
12-bit ADCs and a low-noise front end (~70 µVrms @ 200 MHz) reveal signal detail that 8-bit scopes miss, with sampling to 2 GSa/s and record length up to 100 Mpts.
12-bit resolution
16× the vertical detail of a standard 8-bit scope.
Up to 2 GSa/s
Capture fast transients with confidence.
Up to 100 Mpts record length
Headroom for long, low-frequency captures.
Up to 120,000 wfm/s
On the 200 MHz models; 500,000 in sequence mode, with 256-level intensity grading.
Where the GPS-2000HD excels
Built for work where 8-bit resolution simply isn’t enough to see what’s happening.
Automotive & ECU diagnostics
CAN & LIN decode with deep memory for engine control unit work.
Embedded design & debug
Optional 16-channel digital input extends mixed-signal circuit work.
Lab & production test
Mask testing and 50+ measurement parameters streamline quality inspection.
Power supply & ripple
12-bit resolution and a ~70 µVrms front end resolve small ripple on large rails.
What 12-bit and 100 Mpts actually look like
Two captures that show why resolution and memory depth matter more than a headline bandwidth figure.

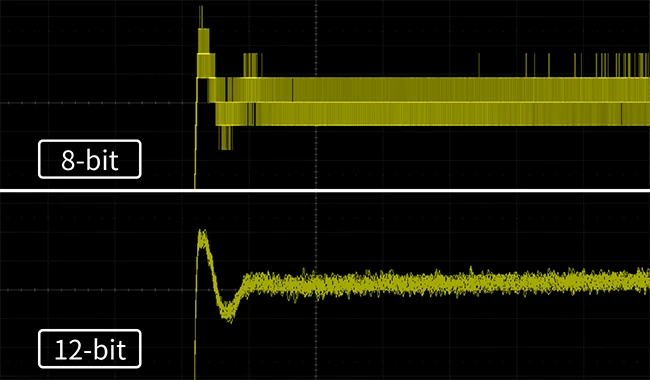

12-bit high resolution
The same signal captured at 8-bit and at 12-bit. The extra vertical resolution separates real signal detail from quantisation noise, which is what makes accurate power supply ripple measurement and engine control unit diagnostics possible.

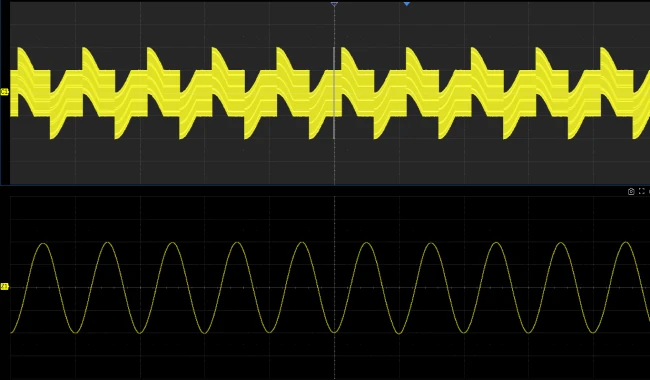

Long memory depth
Up to 100 Mpts means you can capture a long, low-frequency or transient event and still zoom in without losing detail. More samples retained also means the accuracy and stability of measurement results improve.
A full analysis bench, not just a scope
Serial decode, power analysis, loop response and mixed-signal work are all handled on the same instrument.
Multiple triggering & decoding
Edge, slope, delay, setup/hold, runt, window, pattern, video and Nth edge, plus serial bus triggering. Decodes I²C, SPI and UART for embedded work and CAN and LIN for automotive, presenting bus traffic as a readable table rather than raw edges.
Powerful MATH & 2 Mpts FFT
Four independent math traces and a hardware-accelerated 2 Mpts FFT, which gives fine frequency resolution with a fast refresh rate. Five window functions, normal, average and max-hold modes, automatic peak detection and markers, plus a user-defined formula editor.
Efficient power analysis
The power analysis option, enabled by a software licence and used with suitable voltage and current probes, analyses 12 measurement types including power quality, current harmonics, inrush current and transient response — removing the manual configuration and formula work these measurements normally require.
Loop response & Bode plot
Bode plot comes as standard. Paired with the isolated signal generator option or an arbitrary waveform generator, it produces a frequency response curve for the device under test, giving gain and phase at every frequency point for stability assessment.
16-channel logic analysis
The optional 16-channel logic probe adds 16 digital channels without giving up any analogue capability, so mixed-signal acquisition happens on one instrument and analogue-to-digital timing problems can be traced end to end.
Touchscreen & remote control
A 7″ capacitive touchscreen with multi-touch gesture support and a redesigned interface speeds up day-to-day operation. Also accepts mouse control, and the full instrument can be driven remotely from a browser over LAN.
Which model do you need?
Choose your channel count and bandwidth — we’ll show you the exact model and part number.
Models & specifications
Three models across two bandwidths — same 12-bit platform, same accessories, same optional modules.
| Model | Bandwidth | Channels | Max Sample Rate | Memory Depth | Waveform Capture | Serial Decode | Part No. |
|---|---|---|---|---|---|---|---|
| GPS-2104HD | 100 MHz | 4 | 2 GSa/s (1ch) / 1 GSa/s (2ch) / 500 MSa/s (4ch) | 50 Mpts/Ch (1ch) / 25 Mpts/Ch (2ch) / 10 Mpts/Ch (4ch) | 80,000 wfm/s (normal) | I²C, SPI, UART, CAN, LIN | 302104 |
| GPS-2202HD | 200 MHz | 2 | 2 GSa/s (1ch) / 1 GSa/s (2ch) | 100 Mpts/Ch (1ch) / 50 Mpts/Ch (2ch) | 120,000 wfm/s (normal) | I²C, SPI, UART, CAN, LIN | 302202 |
| GPS-2204HD | 200 MHz | 4 | 2 GSa/s (1ch) / 1 GSa/s (2ch) / 500 MSa/s (4ch) | 100 Mpts/Ch (1ch) / 50 Mpts/Ch (2ch) / 25 Mpts/Ch (4ch) | 120,000 wfm/s (normal) | I²C, SPI, UART, CAN, LIN | 312204 |
Technical specifications
| Vertical resolution | 12-bit |
| Bandwidth options | 100 MHz (GPS-2104HD) · 200 MHz (GPS-2202HD / GPS-2204HD) |
| Channels | 4 (GPS-2104HD / GPS-2204HD) · 2 (GPS-2202HD) |
| Input | 1 MΩ ±2% in parallel with 17 pF ±2 pF · 400 V peak maximum · no internal 50 Ω: bandwidth and rise time assume an external 50 Ω termination |
| Max sampling rate | 2 GSa/s (one channel) · 1 GSa/s (two channels) · 500 MSa/s (four channels) |
| Memory depth | GPS-2104HD: up to 50 Mpts/Ch · GPS-2202HD / GPS-2204HD: up to 100 Mpts/Ch |
| Waveform capture rate | 80,000 wfm/s (GPS-2104HD) or 120,000 wfm/s (200 MHz models) in normal mode · 500,000 wfm/s in sequence mode, all models |
| Trigger types | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth Edge, Delay, Setup/Hold, Serial |
| Serial trigger & decode | I²C, SPI, UART, CAN, LIN (standard) |
| Measurement | 50+ parameters, statistics, histogram, trend and track supported |
| Math | 4 traces · 2 Mpts FFT, filter, +, −, ×, ÷, ∫dt, d/dt, √, and more · user-defined formula editor |
| Data analysis | Search, Navigate, History, Mask Test, Counter, Bode Plot, Power Analysis |
| Optional: 16-channel digital input | Logic probe on the SBUS socket, with a software licence · up to 1 GSa/s · record length up to 10 Mpts |
| Optional: USB AWG module | 1 channel, 25 MHz, 125 MSa/s, 16 kpts wave memory, isolated output · with a software licence |
| Optional: power analysis | Software licence · power quality, current harmonics, inrush current, switching loss, slew rate, modulation, output ripple, turn on/off, transient response, PSRR, SOA, and efficiency on four-channel models · used with suitable voltage and current probes |
| Standard I/O | USB 2.0 Host ×2, USB 2.0 Device, 10M/100M LAN, auxiliary output (trigger out, or pass/fail with mask test on), SBUS (for the optional logic probe only) |
| Display | 7″ TFT-LCD capacitive touchscreen (1024×600) |
| Control | Multi-touch gestures · mouse control · remote web control over LAN |
| Measurement restriction | Not for measurements on mains circuits |
| Power | 100–240 V, 50/60 Hz · 80 W maximum, 40 W typical |
| Mass | 2.6 kg (main unit) · 3.8 kg (with packaging) |
| Dimensions | 312 × 132.6 × 151 mm (l × w × h), including knobs and supporting legs |
| Operating conditions | 0°C to 40°C, 5% to 90% RH at 30°C, ≤3000 m altitude |
| Storage conditions | −30°C to 70°C, ≤15000 m altitude (non-operating) |
What’s in the box
- GPS-2000HD main unit7″ capacitive touchscreen
- Passive probesOne per channel
- Power cord & USB cablePC connectivity
- Certificate of calibrationSupplied with quick start guide
