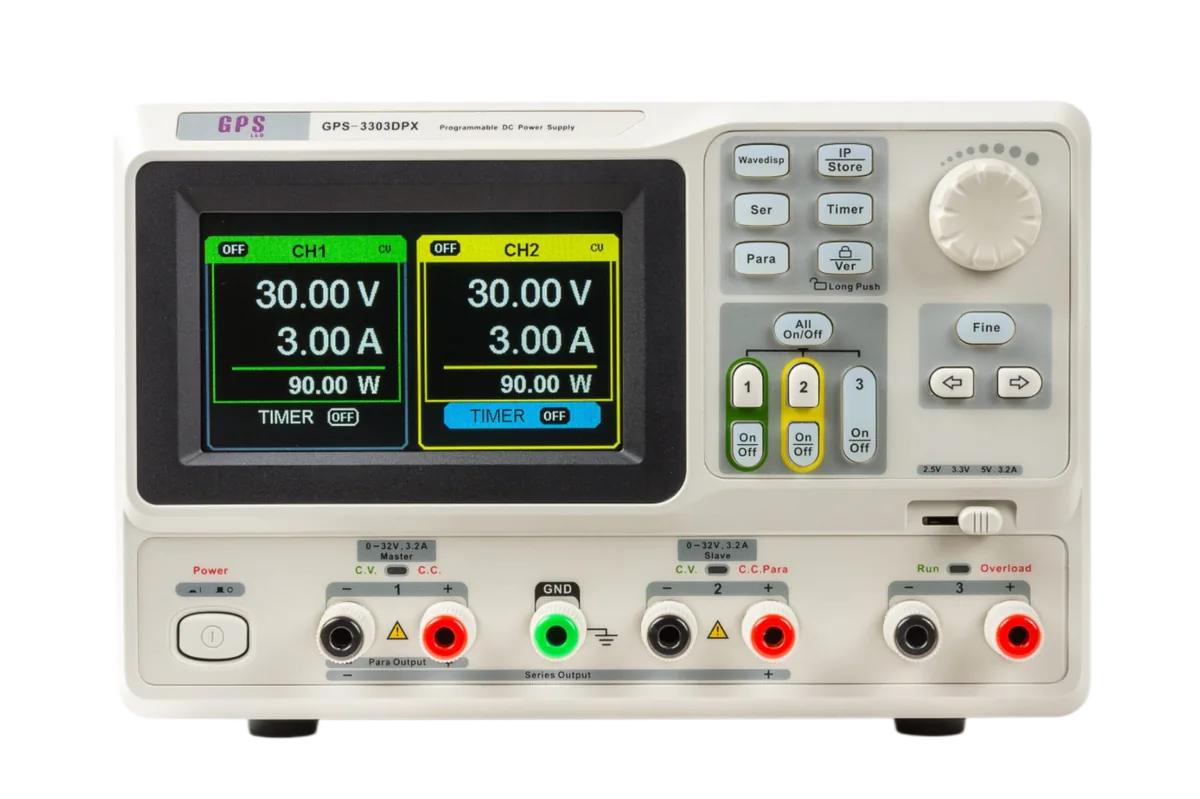

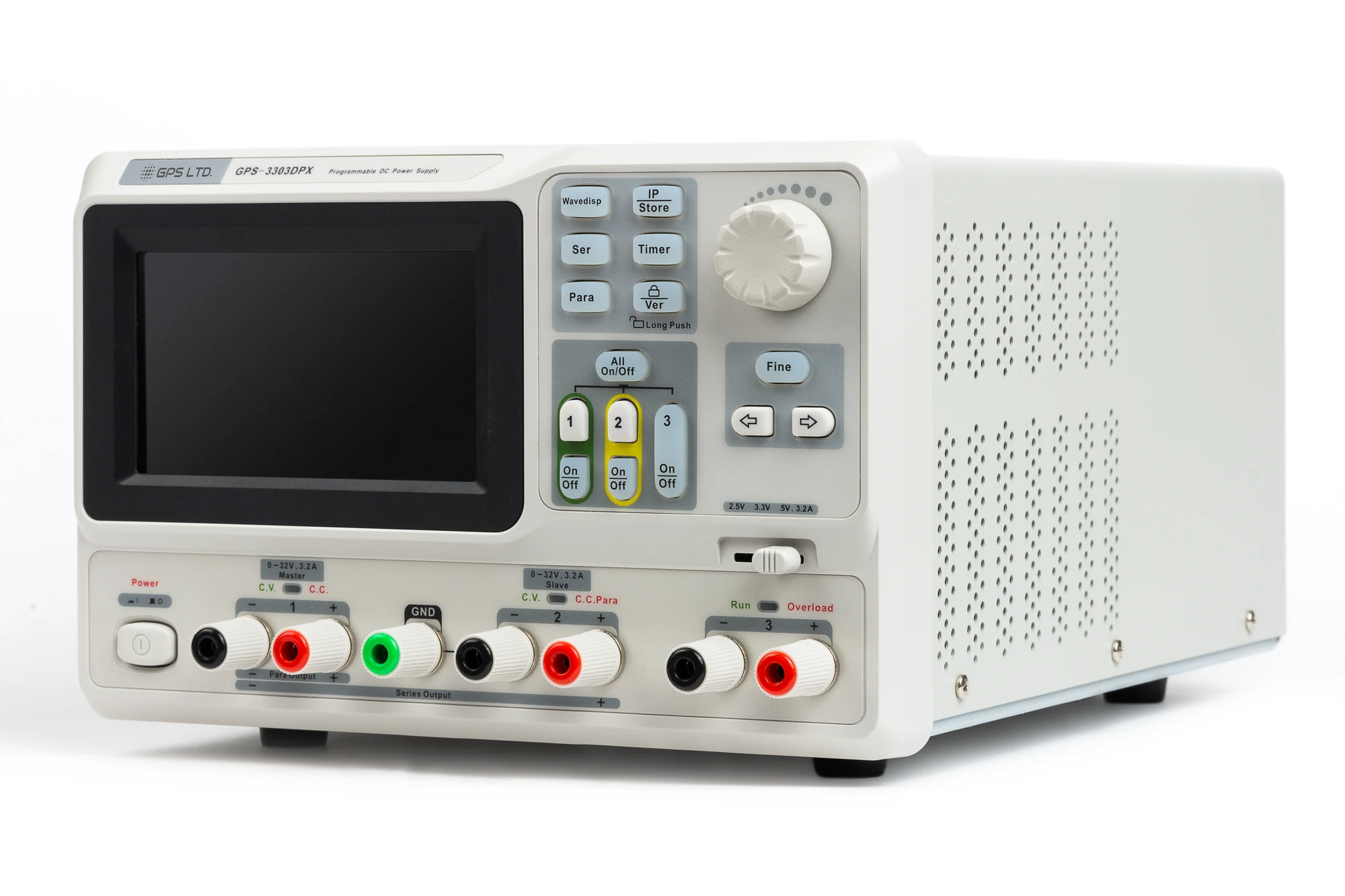

GPS-3303X/DPX
Programmable DC Power Supply
Programmable DC Power Supply
Generate highly accurate levels of voltage with this fully programmable power supply

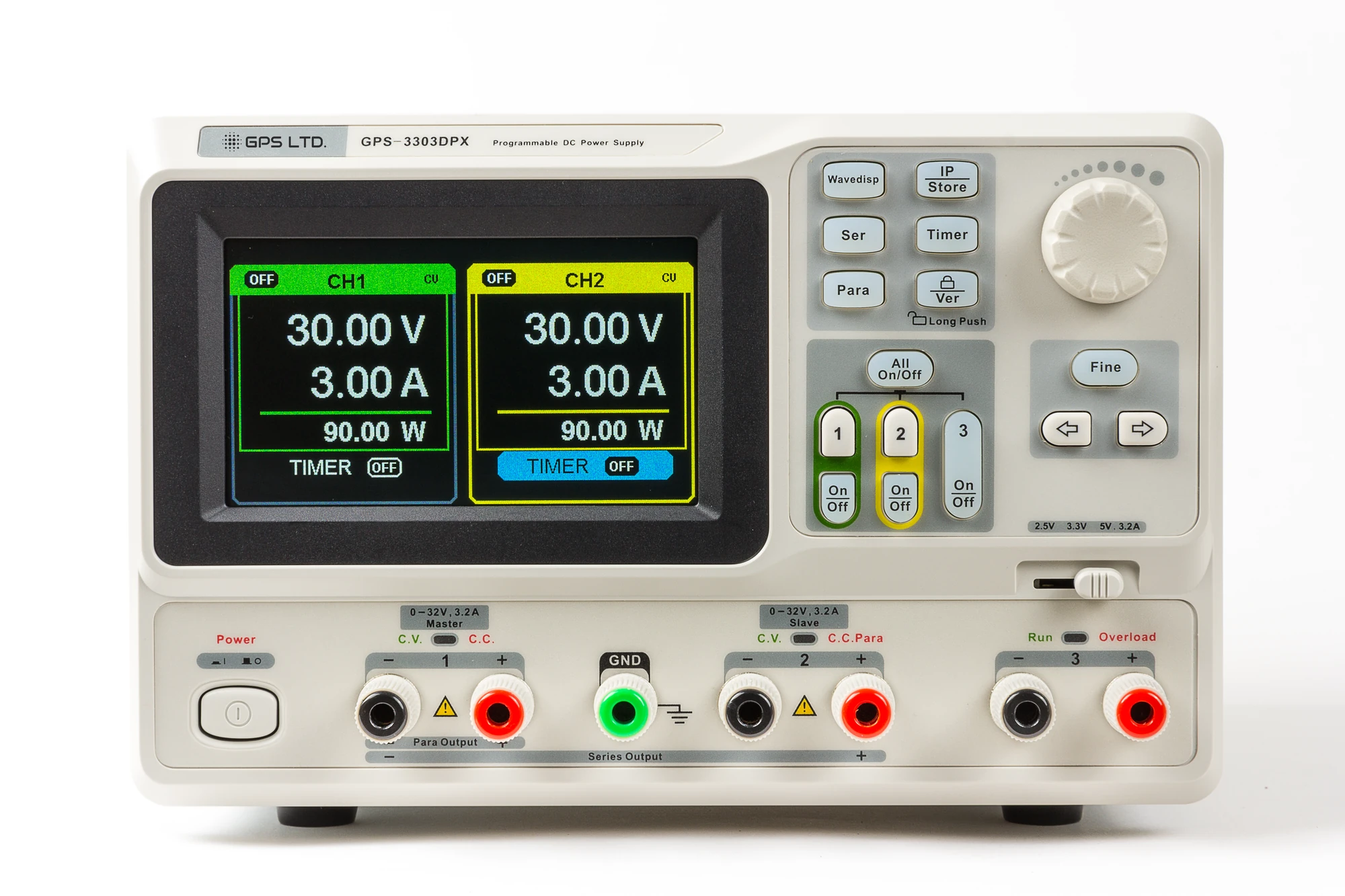

Featuring a large size, 4.3″ screen and several buttons/dials for easy adjustments to settings, the 3303X/DPX gives the user full control over voltage output. It features 3 independently-controlled and isolated outputs and is capable of generating a total of 220W. The 3303X or DPX has independent, series, parallel output modes, is compatible with 100, 120, 220 and 230V power grids and even has an internal, temperature-controlled fan to cool the unit and ensure long life use. For quick and easy access to settings, the unit includes the ability to save up to 5 preset test configurations and recall them as needed.
- CH1: Voltage 0 to 32 V, Current 0 to 3.2 A
- CH2: Voltage 0 to 32 V, Current 0 to 3.2 A
- CH3: Voltage 2.5/3.3/5.0 V, Current 3.2 A
- 100/120/220/230 V compatible design to meet the needs of different power grids
- Intelligent temperature-controlled fan effectively reduces fan noise
- Clear graphical interface, with waveform display function
- Five internal groups of system parameter save/recall, supports data storage space expansion
- Free PC software: Easypower. Also supports remote programming and includes a LabView driver
30-Days Protection
Money back guarantee (UK customers only)
24/7 Guarantee
Full after-sales support guarantee
1-Year Warranty
Available on all products
Ordering Information
Support
Extra information relating to this product
No optional accessories available
Datasheet (628kb)
Source and measure electrical signals such as voltage, current, resistance, and frequency, and pulses so as to verify the accuracy of sensors and measuring instruments.
1-year warranty (subject to product registration with GPS LTD).
Visit www.gpslimited.com/register-product
Service and calibration available.
Please contact for more information
